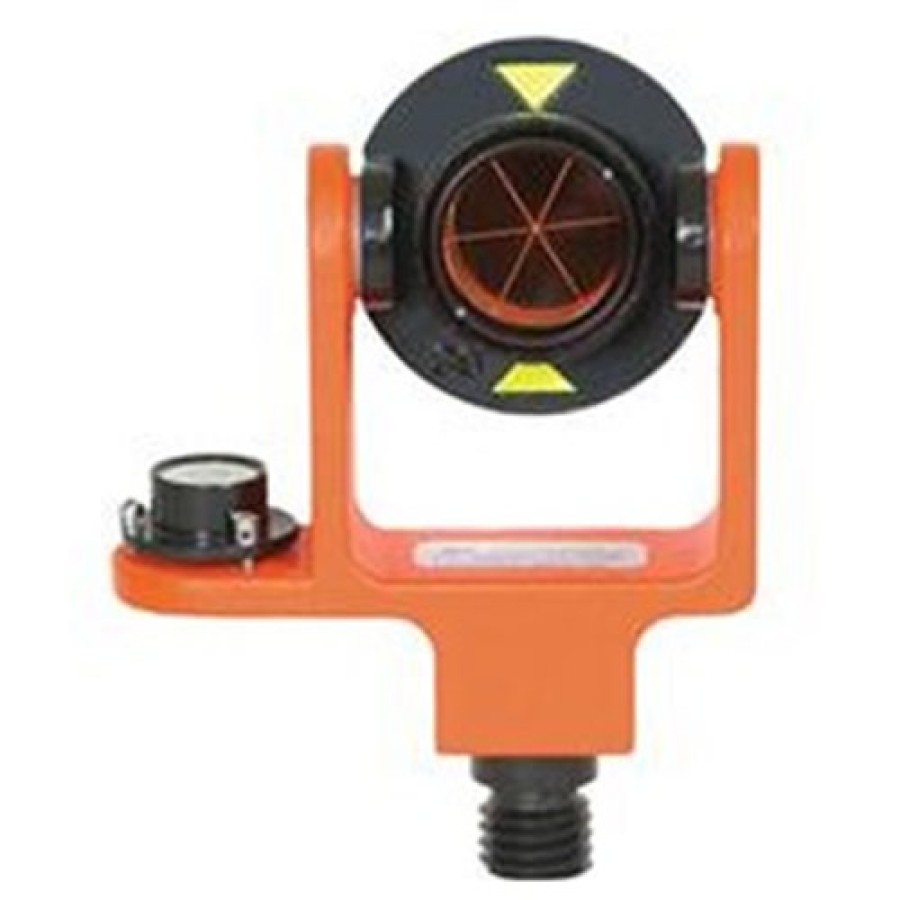

The SECO Mini Prism System with Side Vial 6200-11-FOR is a cost effective purchase complete with a 1" mini prism, side vial, and a padded bag to carry them all. The peanut prism is coated in copper which prevents it from fogging. The tilting holder is made for either 0 mm or -30 mm offset. Located at the side of the device is the circular vial, which can be adjusted according to the user’s preference.

Diverse Mounting Options

If mounted on a tribrach or prism pole, it can be configured at either 70 mm, 100 mm, or 115 mm height. If used for hand-held work, a bracket or S-hook can be easily attached to the plum bob. If used for stake-out work, a point is included.

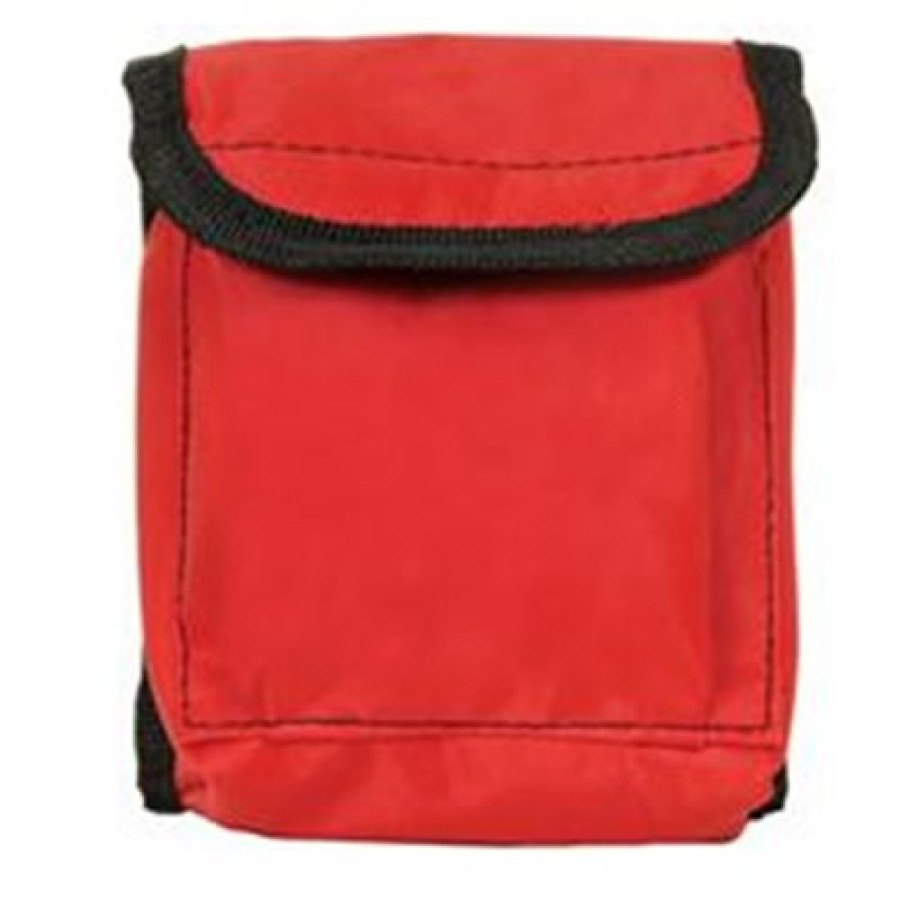

The economical mini prism system comes with a padded bag where the parts can be kept and a belt loop so that it can be conveniently carried around during field work. It is powder painted in bright fluorescent orange.

This professional surveyor equipment comes with a 1 year warranty.

Features:

- 1" mini prism coated in copper that helps block out the fog

- Tilting holder can be configured to either 0 mm or -30 mm offset
- Adjustable circular vial located at the side
- Can be mounted on a prism pole or tribrach at heights 70mm, 100mm, and 115mm
- Can be hand-held using plumb bob bracket or S-hook where plumb bob can be attached with ease
- Includes point for stakeout work
- Includes padded system bag with belt loop
- Available in powder painted fluorescent orange

What's in the Box:

- (1) SECO Mini Prism System 6200-11-FOR
- (1) Plumb bob bracket
- (1) S-hook
- (1) Stakeout point
- (1) System bag with belt loop
- (1) 1 Year Warranty

Brochure/Datasheet

Instruction manual
