The South ET series Theodolites have Smart appearance, reasonable structure, practical functions. They are easy-to-use, and with excellent performance and reliable quality. (Includes: theodolite, tribrach, NiH rechargeable battery, Charger, user manual, and one year manufacturer warranty)

Features:

• 2" Angular Accuracy
• Reading system: Absolute Encoding
• Auto-vertical compensator: Liquid- electric detection

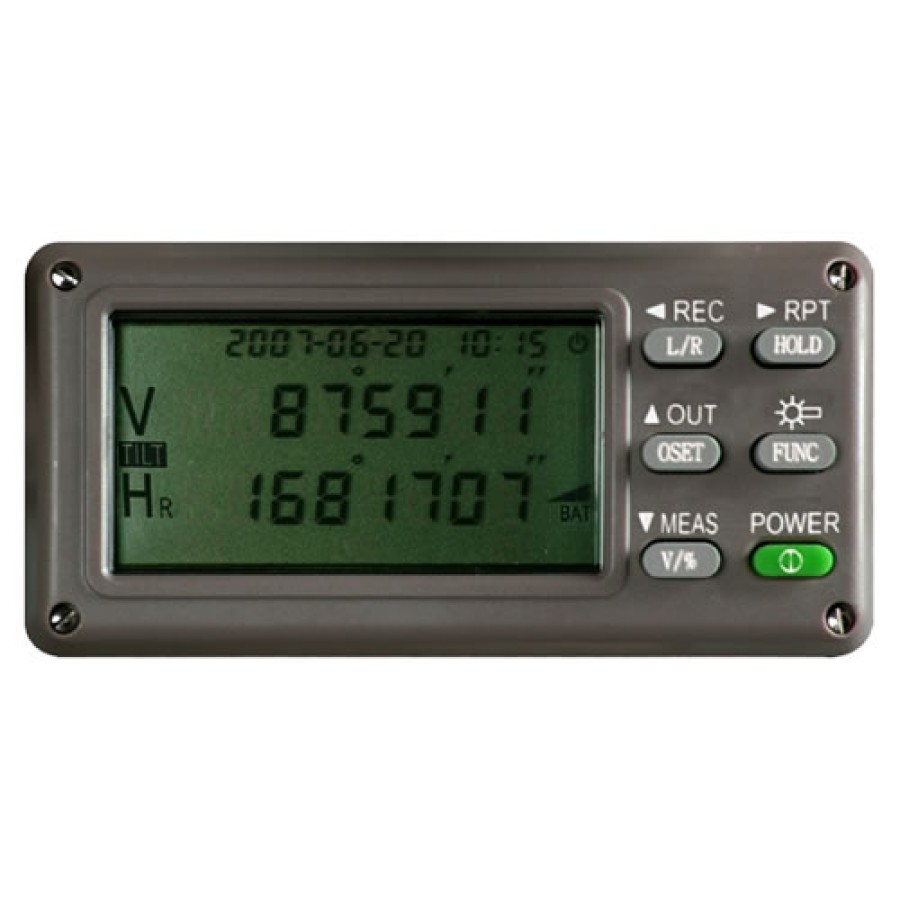

• Specific large 2-side LCD screen for clear reading in all conditions
• Detection method: Horizontal angle: dual Vertical angle: dual

What's in the Box:

• (1) Main Frame
• (1) Rechargeble Battery
• (1) Battery Charger
• (1) Operation Manual
• (1) Carrying Case
• (1) Belt for case
• (1) Plummet
• (1) Tools Kit
• (1) QC Pass
• (1) Warranty Card
• (1) Rain Cover


Specifications:

• Measuring method:  Absolute code
• Raster diameter:  79mm
• Min display unit: 1″/ 5″Selectable
• Accuracy: 5″
• Horizontal angle: Dual
• Vertical angle: Dual

• Image: Erect
• Tube length :157mm
• Effective aperture: 45mm (EDM:50mm)
• Magnification: 30×
• Field of view: 1°30′
• Minimum Focusing Distance: 1.4m
• Resolving Power:  3″
• Stadia ratio:  100
• Stadia constant:  0

• System:    Liquid-electric detection
• Work range:  ±3′
• Resolving power:  1″

• Plate vial:  30″/2mm
• Circular vial:  10′/2mm

• Image:  Erect
• Magnification:  3×
• Focusing range:  0.5m~∞
• Field of view:  5°

• Type:  LCD display 2sides

• Laser Range    be seen up to 100 meters away

• Power supply: Rechargeable Ni-H battery/AA Battery
• Voltage:  DC 6V
• Continuous operation time:  10hours

• Dimension:  L145*H318*W179
• Weight:  5.2kg
