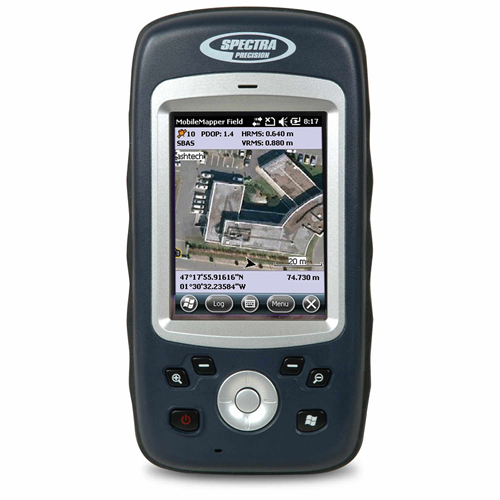

The Spectra MobileMapper 20 GPS receiver 93794-51 is an easy-to-use, complete mapping solution for GIS applications. As an upgraded version of the MobileMapper 10, this handheld data collector features larger storage memory, a bright new VGA screen, a higher resolution camera and a 3.5G cellular modem. With on-board field software, it provides a short learning curve and quick field data exchange.

An essential accessory to GNSS devices, this field controller has internal GPS capability, allowing surveyors to log assets in real-time with 1 to 2-meter accuracy. It also has Bluetooth, Wi-Fi, 3.5G connectivity and a 5-megapixel camera for capturing images on the jobsite.

The Mobile Mapper 20 features a high-resolution color touchscreen display for viewing graphics and maps in sharp detail, even in bright sunlight. This GIS data collector also has a fast 600 MHz processor, 256MB RAM, 512MB internal memory, and a high capacity SD card slot for saving large amount of field data

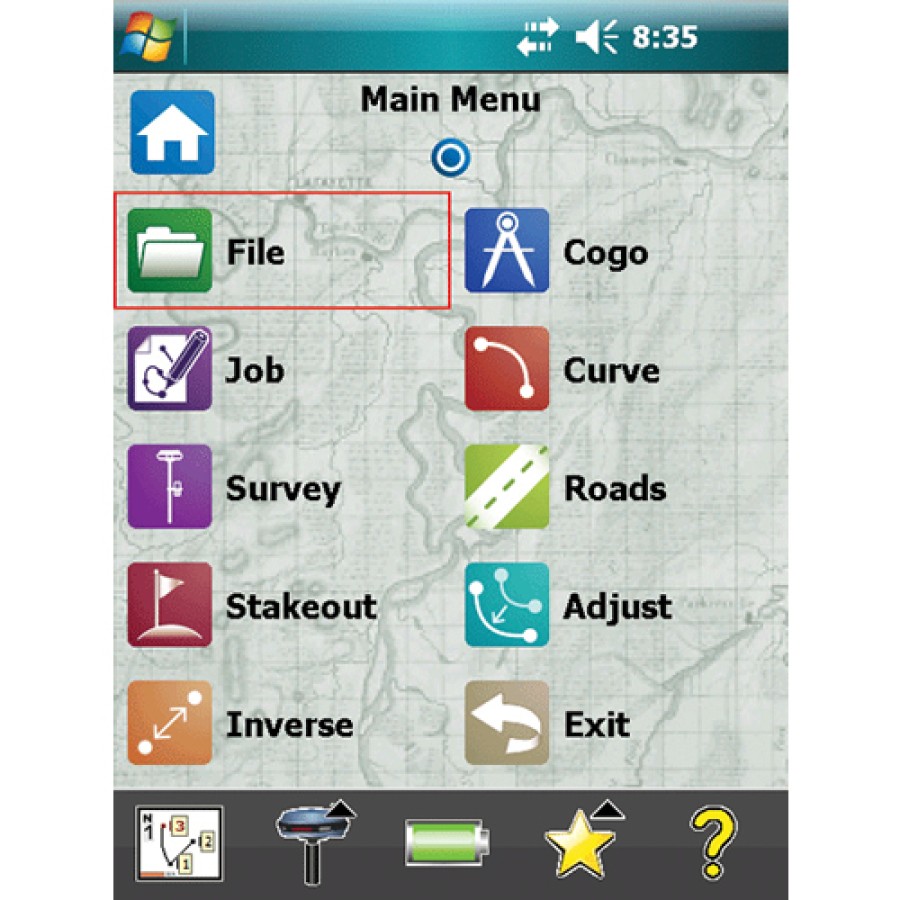

With built-in Mobile Mapper Field Software, the MobileMapper 20 is the perfect solution for GIS data collection, asset management, area measurements, maps creation and updates. This data collection software is very intuitive and easy to use, requiring minimum training.

Includes:

Specifications:

• GNSS Characteristics: 20 channels: GPS L1 C/A; SBAS: WAAS/EGNOS/MSAS; External antenna connector;NMEA Output
• Accuracy Specifications: Real-time SBAS: < 2 m typical; Post-processed: < 50 cm typical
• Processor : ARM9™; Clock frequency: 600 MHz
• Operating System: Microsoft Windows Embedded Hand Held.; Installed language at delivery: English, French, Spanish,German, Portuguese, Italian, Simplified & Traditional Chinese, Greek, Japanese or Korean. Installed OS
  language cannot be changed once the product has been shipped in a given language.Software package includes: Internet Explorer®; Microsoft Office Mobile; ActiveSync®; Transcriber (handwriting recognition)

• Communication: Cellular: Built-in cell modem; Bands: Depending on MobileMapper 20 P/N and detected
  network:P/N 802168-00: 3.5G: 900 and 2100 MHz; 2G: 850, 900 and 1800 MHz; P/N 802168-10: 3.5G: 850 and 900 MHz
  2G: 850, 900, 1800 and 1900 MHz. Bluetooth: 2.1 with EDR; WiFi: Integrated; Interface: USB

• Physical Characteristics: Receiver size: 169 x 88 x 25 mm; Receiver weight, alone: 310 g; Receiver weight (batteries included): 380 g

• User Interface Keyboard: Alphanumeric virtual keyboard; Four-direction Scroll and Enter button, Zoom In/Out keys
  + context-sensitive keys; Illuminated keyboard with touch screen; Virtual keyboard

• Display: Color TFT, VGA, high-resolution display, sunlight readable, with touch screen, LED backlight; Size: 3.5”; Colors: 262 k
• Memory: 256-MB SDRAM; 512-MB NAND Flash (non-volatile); Micro SDHC™ memory card (up to 32 GB)

• Environmental Characteristics: Operating temperature: -10° to +60°C (14 to 140°F); Storage temperature: -30° to +70°C (-13 to 158°F); Humidity: 95% non condensing; Waterproofness: IP54; Free drop: 1.2 m to concrete.
• Power Requirements; Battery life: > 20 hours @ 20 ºC, with GPS on, Bluetoothand WiFi disabled, screen backlight used at minimumlevel 20% of the time.; Charging time: 4 hours; Removable battery

• Multimedia & Sensors: 3-Megapixel camera; E-Compass; G-Sensor; Speaker; Microphone

• Software Options: Spectra Precision MobileMapper Field and Office software
