Solinst Mini Oil/Water Interface Meters give clear and accurate
measurements of product level and thickness in wells and tanks.
Determination of both light (floating) non-aqueous phase liquids (LNAPL)
and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and
easy.

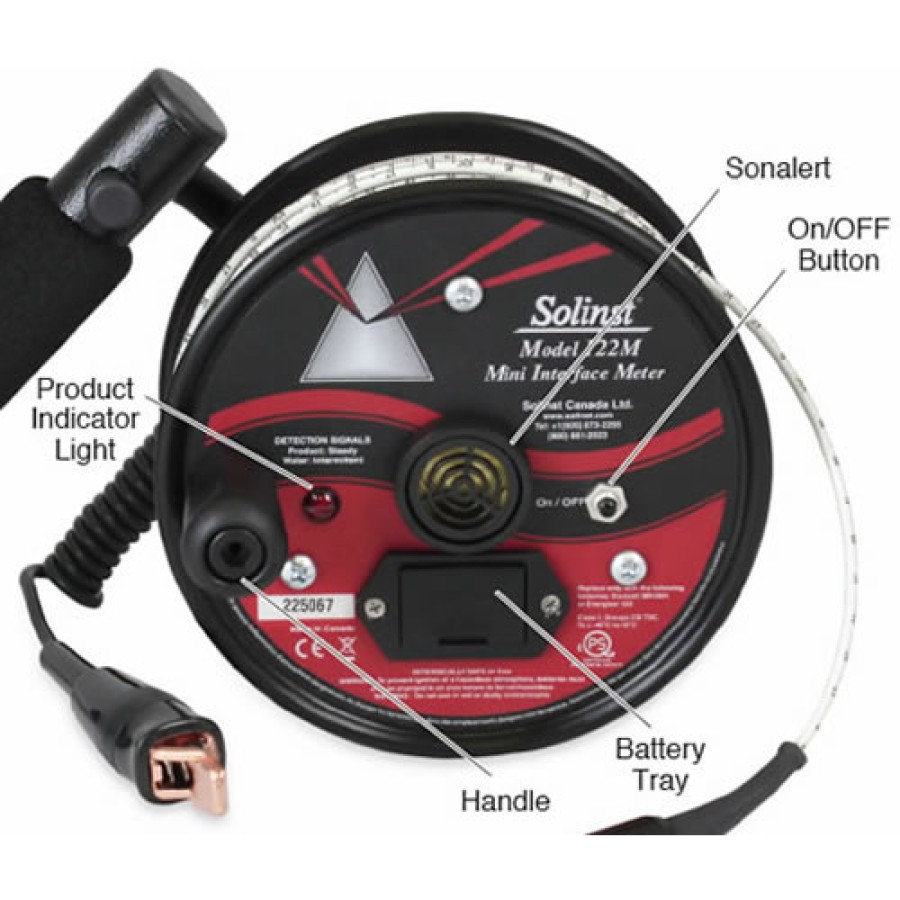

The Model 122M Mini Interface Meter with PVDF laser marked
cable is a convenient small version, which can easily to fit in a
backpack, or an optional custom mini carry case. It uses narrow laser
marked PVDF cable, in 80 ft or 25m lengths. The Mini Interface Meter
enhanced electronics include automatic circuitry testing; 300 hours of
on-time battery life; clear signals; and high accuracy. The circuits are
powered by one standard 9V battery housed in easy-access drawer in the
faceplate.

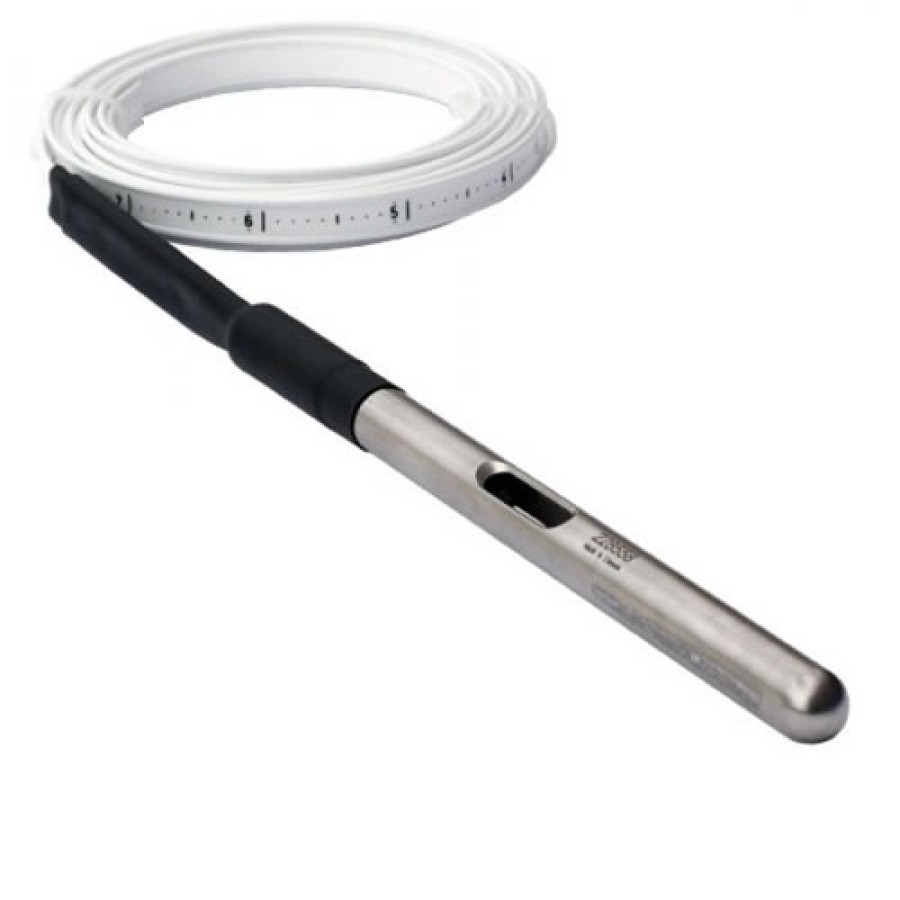

The 122M uses the P8 Probe, which is 5/8" in diameter
(16mm) and stainless steel construction. It is pressure proof up to 500
psi. The beam is emitted from within a Hydex cone-shaped tip. The tip is
protected by an integral stainless steel shield, and is excellent for
the vast majority of product monitoring situations. The 0.12" (3mm)
coaxial cable has a durable PVDF jacket with permanent laser markings
every 1/100 ft. or each millimeter. The cable has a braided copper outer
conductor, a stranded stainless steel central conductor, and a smooth
chemical-resistant surface that is easy to decontaminate.
Features
Sensor accuracy to 1/200 ft or 1.0 mm
Easy access battery: minimum 300 hours of life
Certified intrinsically safe
What's in the Box:
(1) Solinst Model 122M P1 Mini Oil/Water Interface Meter, 20m
(1) Every mm marked in black, meters marked in red
(1) P1 probe measures 5/8″ in diameter
