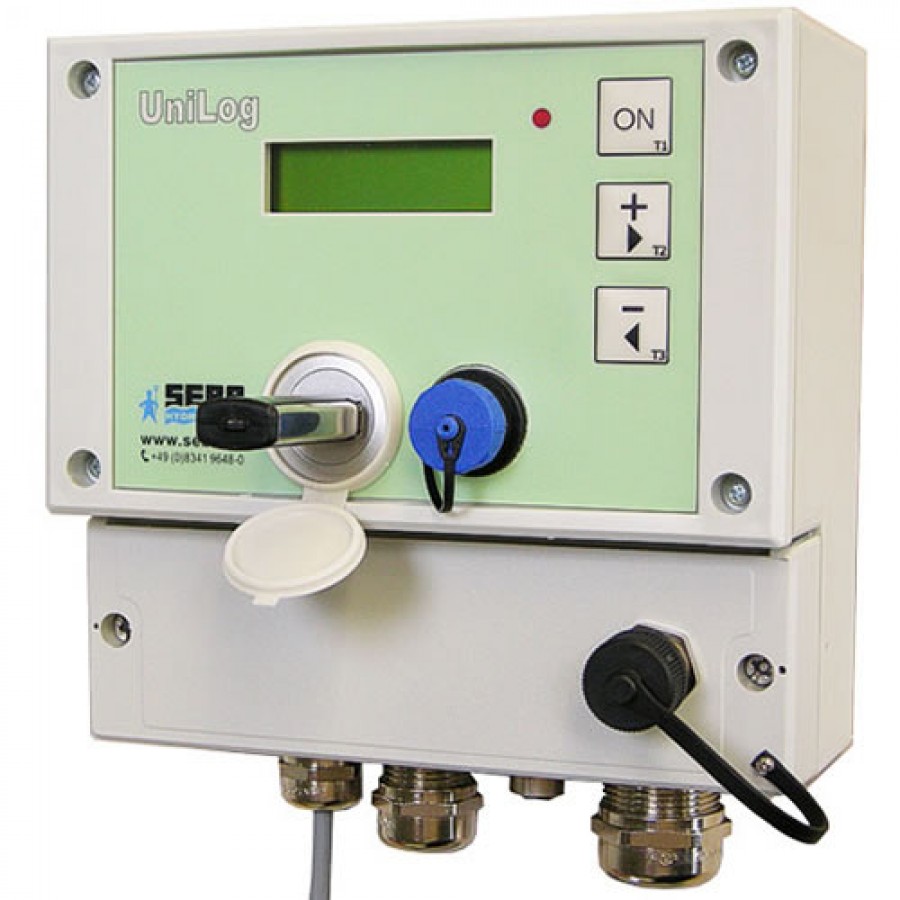

The Unilog data logger is a new product development from SEBA Hydrometrie which can digitally record the water level other parameter such as water quality or rainfall. The implementation of a state-of-the-art serial flash memory enables a relatively high data capacity combined with high data security. The new logger systems also stands out by a lower power consumption and reduced dimensions of the electronic circuit board.

• The most important features are as follows:

• Event-controlled / time-controlled registration

• Individual control of the connected sensors

• Alarm management

The basis of the logger is a stand alone “Central Processor Unit (CPU)”. In total eight analogue and two impulse inputs can be  connected via terminals to the logger. In addition a variety of options are available: modem module, USB, bluetooth interface or LAN.
The CPU board controls a CPU bus in order to combine several digital sensors to one single-master unit / multi-slave. Therefore it is possible to strictly separate the management system of the data logger from that of the alarm. A special RTC-IC (real time clock) constantly secures the time and watchdog function independently from the micro controller.

Features:

• Universally applicable, line strong data collectors with a total of 32 logical channels

• Large 4 MB ring memory for 280,000 measurements

• Compact plastic housing for wall mounting

• Backlit LC display with three multi-function buttons to display current measured values ​​and system states

• Configurable analog and digital input channels to connect up to 32 sensors

• LAN port and mini USB for data transfer optional

• Connectivity for external GSM/GPRS modem type GSM742, satellite modem type Iridium etc.

What's in the Box:

• (1) Seba Hydrometrie Unilog Multi-Channel Data Logger

• (1) User Manual

• Brochure/Datasheet

• Instruction manual


Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
