The GSM/GPRS transmission and datalogging system SlimLogCom SlimLogCom  is a miniature data transmission system with integrated data logger for an economic control of groundwater monitoring stations. The following features are characteristic for the System:

1. Compact Construction

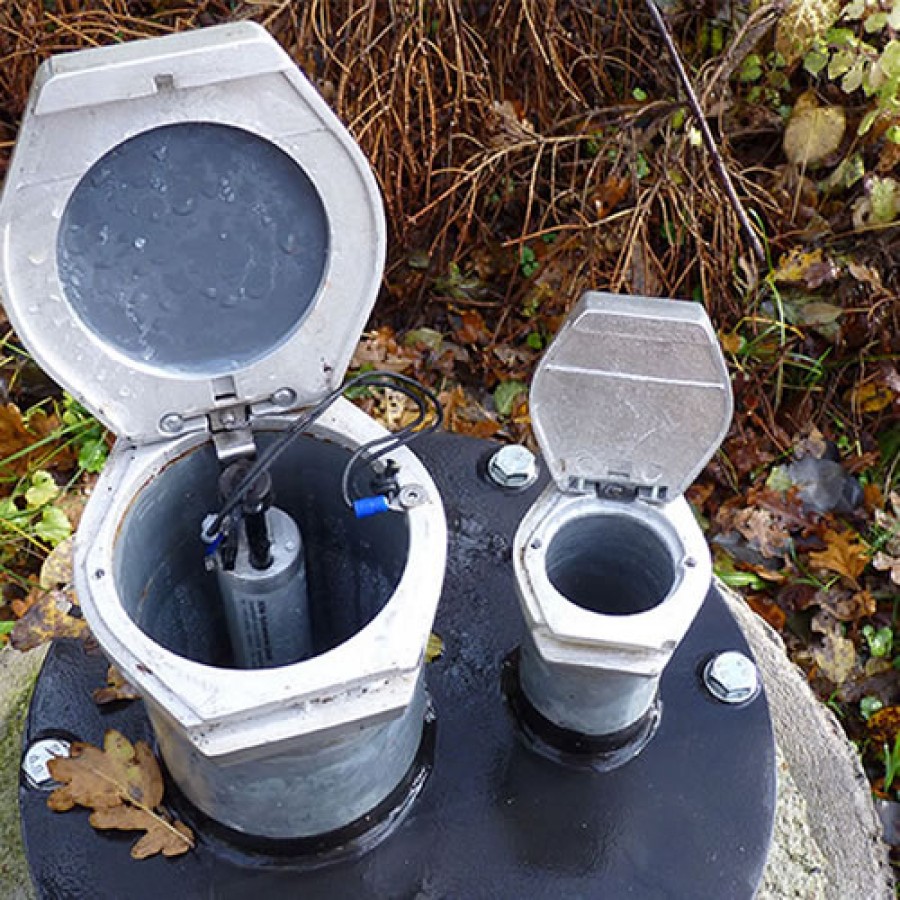

Our SlimLogCom module with integrated GSM/GPRS modem and antenna is suitable for installation in observation wells starting from 1 1/ ” diameter. 2 For observation wells 2” or bigger, control measurements with electric contact meters (KLL) are possible without removing the system from the casing.

2. Energy Management

Standardly, the system comes with four 1,5V Alkali manganese batteries. A sophisticated energy management (time slot procedure) provides high battery lifetime and therefore a minimum amount of maintenance. A battery change is blindingly easy.

For longer download intervals, SlimLogCom the system can be equipped with two 3,6 V lithium batteries. With a weekly download interval the lifetime of the sytems is more than 8 years.

3. Automatic call of the measuring sites and SMS alarm

The SlimLogCom System can be called comfortably in  individually programmable time slots via the software DEMASole. Independently, alarm limits can be defined (e.g. water level, battery capacity). SMS alarms can be sent to up to 8 different mobile phone numbers, as well
as by email (GPRS) or via a provider to a facsimile instrument. Alternatively, data transmission is possible in pushoperation to an FTP-Server. Registered data can also be sent via SMS if neccessary.

Features:

• Data transmission via GSM/GPRS networks:  automatic data retrieval;  Data push to FTP-servers;  SMS data transmission;  SMS-Alarm

• Time-Server synchronisation

• Memory for 280.000 values

• Possibility of event-driven data acquisition

• Watch-dog function for safe operation and high data security

• Cost reduction due to longer control intervals

• for observation tubes starting from Ø 1 1/ ”

• Subsurface installation possible


What's in the Box:

• (1) Seba Hydrometrie SlimLogCom2 Data Logger with Data Transmission


• (4) 1.5V alkaline manganese batteries (standard)


• (4) 3.6V Lithium baby cells (option, SlimCom3G type, extended life time)

Brochure/Datasheet

Instruction manual
