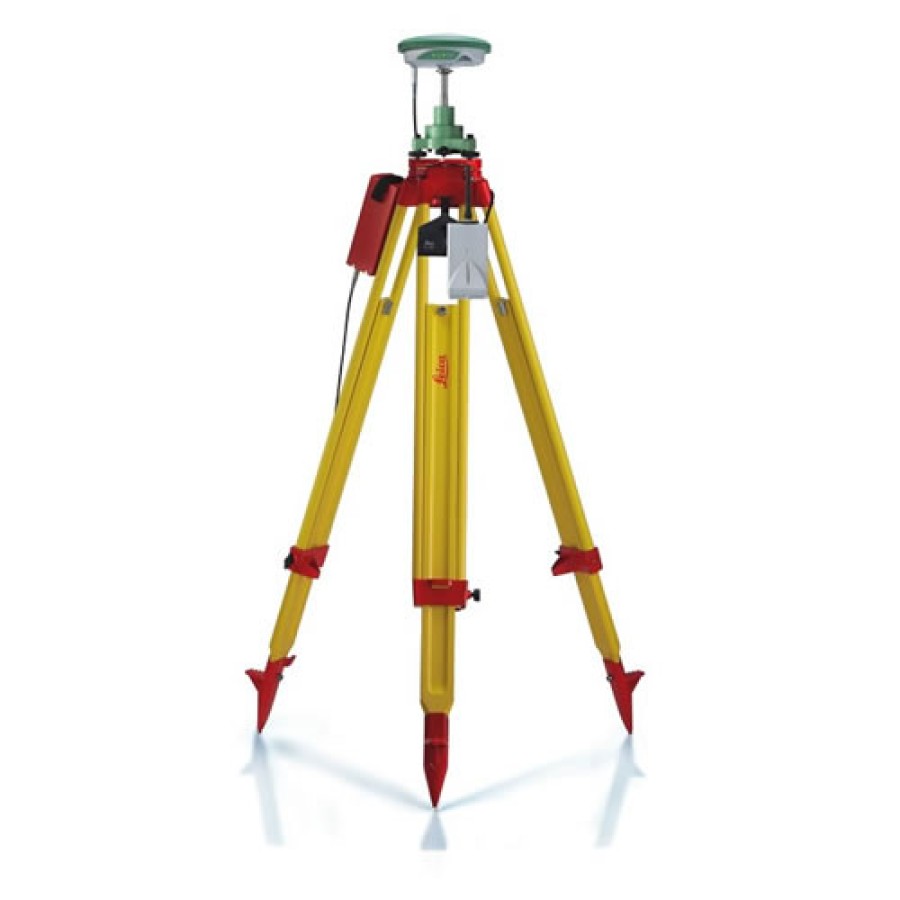

The most cable free and compact GNSS receiver setup, the Leica Viva GS08plus is light-weight whilst still flexible and is the right choice for many surveying projects. The Leica GS08plus is the complete integrated and compact GNSS solution..

Pick it up and measure

Simply turn on the Leica Viva GS08plus and a connection is made to the local reference network. Full support of Radio Technical Commission for Maritime Services (RTCM) 3.1 transformation message, positions are automatically provided and supplied in local coordinates. The GS08plus is always ready to measure.

Easy to use and fast to understand

SmartWorx Viva LT is easy to use software and designed with simplicity in mind. It uses logical menu structures and  clear graphics along with simple terminology and workflows. This improves work  production speed for field crews in minimum time frames.

Integrates and works alongside existing equipment

Logical integration with Leica Viva ensures total versatility and unlimited scalability. Enjoy all the benefits of a modern surveying system and the expansion at any time.

Features:

- Turn on and Measure

- Easy to use

- Lightweight 2.6kg

- GNSS Technology

- RTK Static Mode:  Horizontal: 5 mm + 0.5 ppm (rms);  Vertical: 10 mm + 0.5 ppm (rms); Compliant

  to ISO 17123-8 standard

What's in the Box:

- (1) 798257 GS08plus GPS/GLONASS SmartAntenna Geodetic 120 Channels GNSS Receiver

- (1) 791827 LOP27 GS08plus GLONASS Option

- (1) 792349 GSW1067 CS10/GS08plus RTK Base Option

- (1) 667216 GRT146 Carrier

- (1) 399244 GST05 Wooden Tripod

- (1) 798181 GDF112-1 Tribrach with Optical Plummet

- (1) 667244 GZS4-1 Height Hook

- (1) 767859 GFU27 Satelline M3-TR1 403-470 Mhz RX/TX Radio in GFU Housing

- (1) 667243 GAT2 435MHz-470MHz Antenna

- (1) 748417 GHT58 Tripod Bracket for GFU Housing

- (1) 785703 GKL32 Battery Charger

- (1) 727367 GEB171 External Battery

- (1) 791695 GVP659 GNSS Base+Rover Container

- (1) 748418 GEV205 1.8m Y-Cable

- (1) 6006736 1 yr Viva GNSS (GS08/12) Basic CCP

Brochure/Datasheet

Instruction manual

Catatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
