The Pacific Laser Systems PLS4 Point and Line Laser Level 60574 is a self-leveling construction laser used for both interior and exterior applications.   It has 2 lines and 2 points for easy plumbing, leveling, and squaring.  The working range is up to 100 feet, cross line accuracy is accuracy within ±1/8 inch at 30 feet, and plumb point accuracy is within ±1/4 inch at 100 feet.   There is also 1/4 x 20-inch thread for use with a tripod.

Beam Projection
The PLS4 combination laser level projects a single horizontal and single vertical line with fan angles of about 180 degrees, as well as a cross line. Towards the back of the unit are two plumb points that project up and down.

Pulse Option
This cross beam laser has a pulse mode for use with an optional SLD laser detector (not included).  The combination of pulse mode and a detector enhances detectability of the beams and enables use outdoors or in bright lighting and enables the level to reach its full working range.

Self-Leveling
This self-leveling line laser automatically compensates for tilts within 6-degrees. If the instrument is further out of level, a red light appears and the unit shuts off. Automatic leveling can be disabled to position the construction laser tool at any angle.

Exterior Features
The PLS4 is dust and water-resistant. Its convenient cantilevered nose ensures that it can be easily set on tracks or similar-shaped objects. The line and point laser level can also be attached to metal surfaces using the included magnetic wall bracket.

Power Source
This Pacific Laser Systems construction laser runs on 3 AA batteries and provides up to 25 hours of operation when using a single beam and 12.5 hours when using two beams. An amber-colored light appears when the batteries are ready to be changed or charged.

The PLS4 line and dot laser also includes a floor stand, carrying case, a user manual, and a 3-year limited warranty.

Features:
- 100-foot range with SLD laser receiver
- Display 2 laser lines and 2 points
- ±1/8-inch accuracy at 30 feet
- Optional SLD laser receiver
- Self-leveling within ±6 degrees
- 180-degree full coverage leveling
- Manual mode for tilting
- Magnetic mount
- 1/4 - 20 tripod thread
- IP54 dust and splashing water
- Auto shut-off of beams when out of self-leveling range
- Outdoor pulsing mode for use with receiver
- Visual low battery indicator
- Impact-resistant molding
- Floor stand
- Hard carrying case

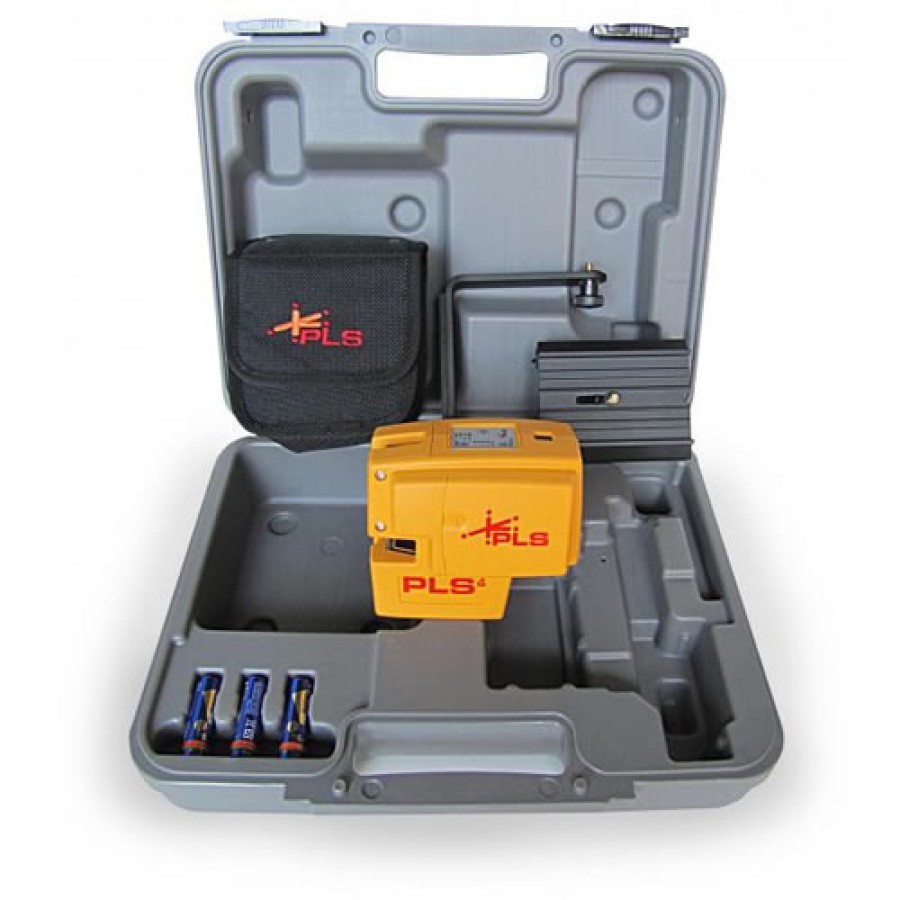

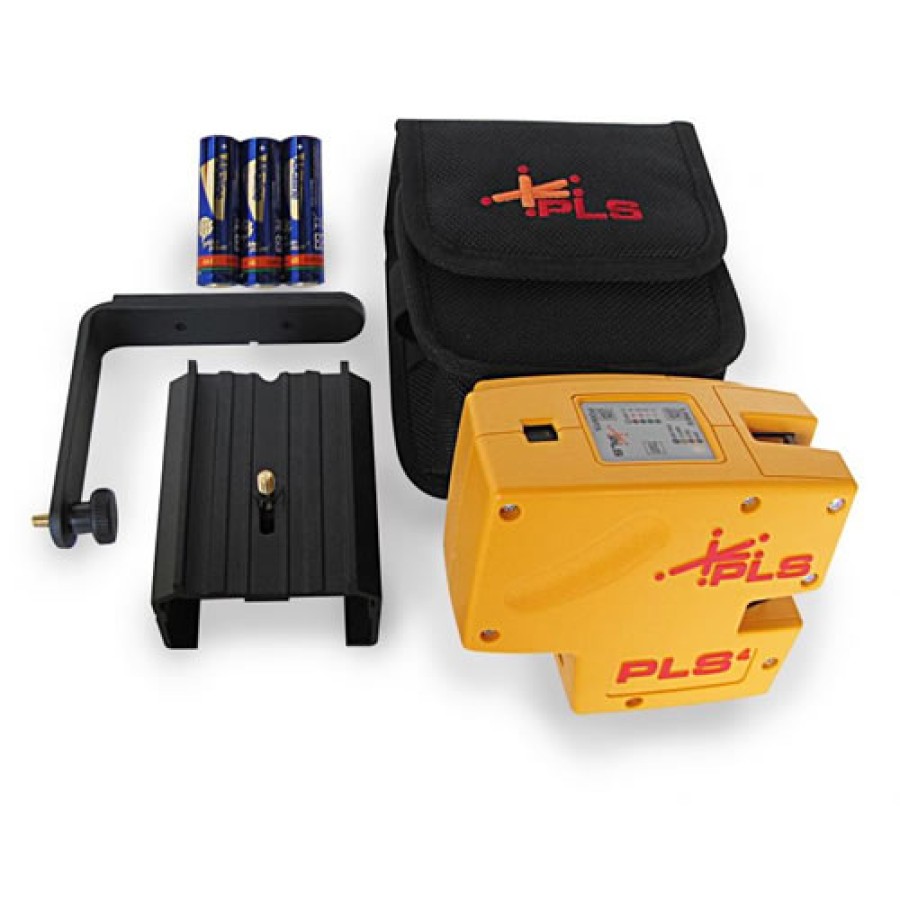

What's in the Box:
- (1) Pacific Laser Systems PLS4 Self Leveling Laser 60574
- (1) Magnetic wall mount
- (1) Floor stand
- (3) AA batteries
- Hard carrying case
- User manual

Brochure/Datasheet

Instruction manual

---
