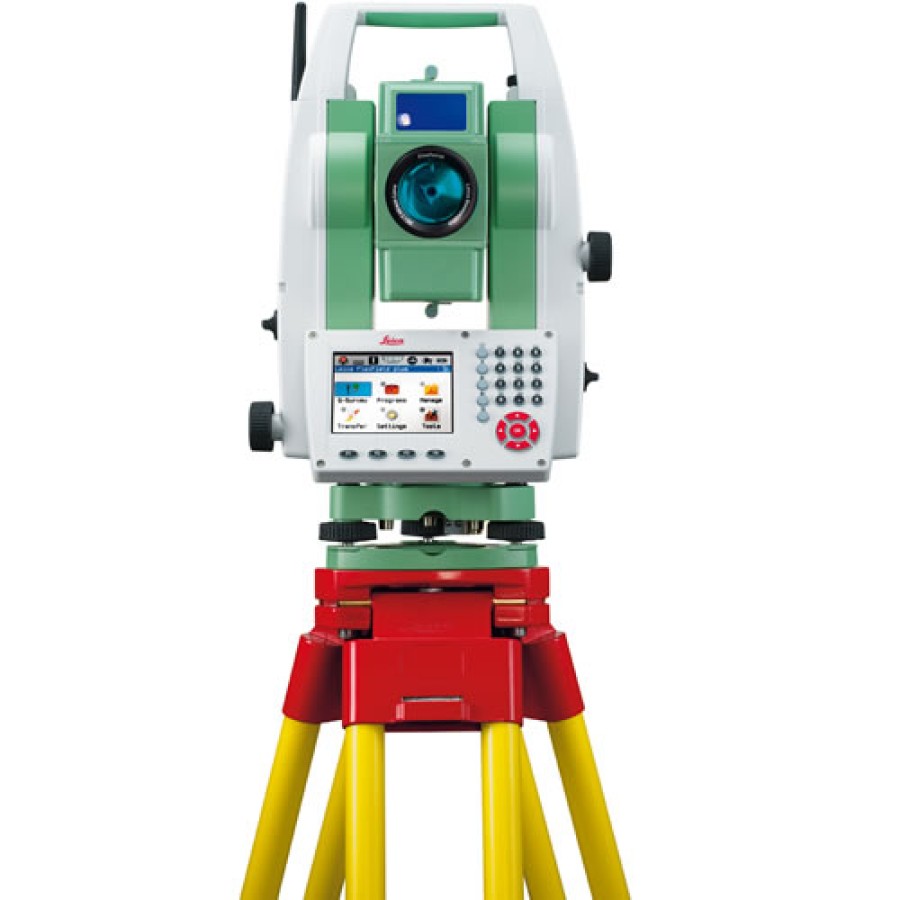

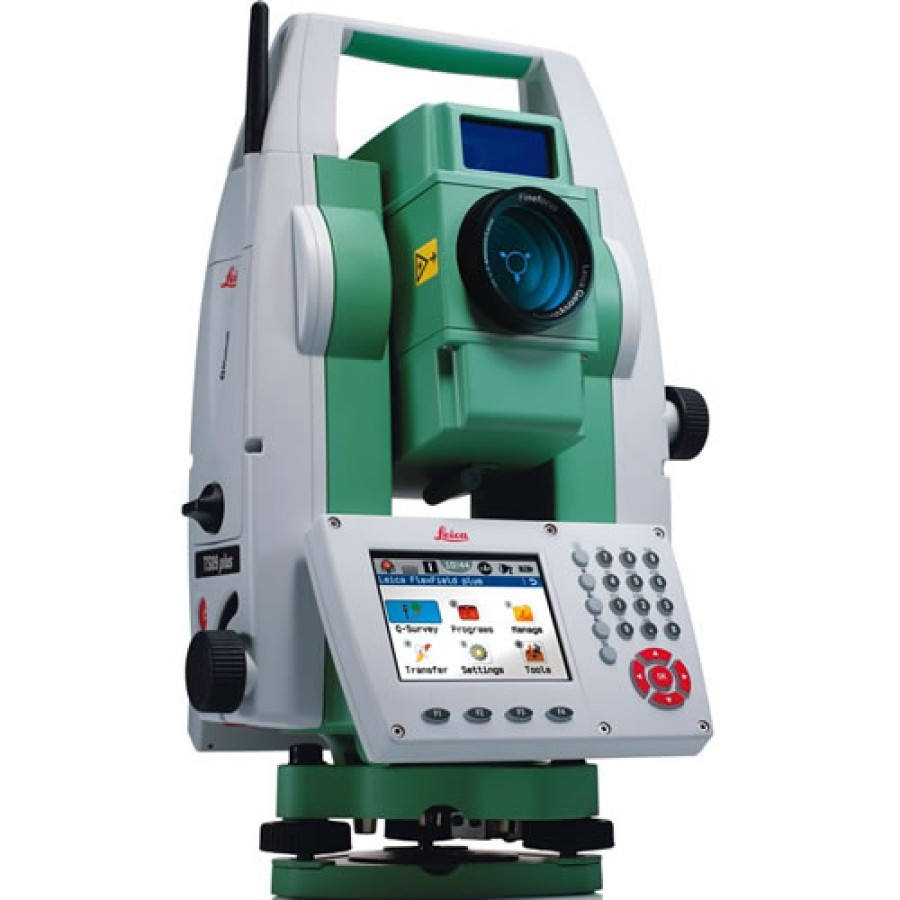

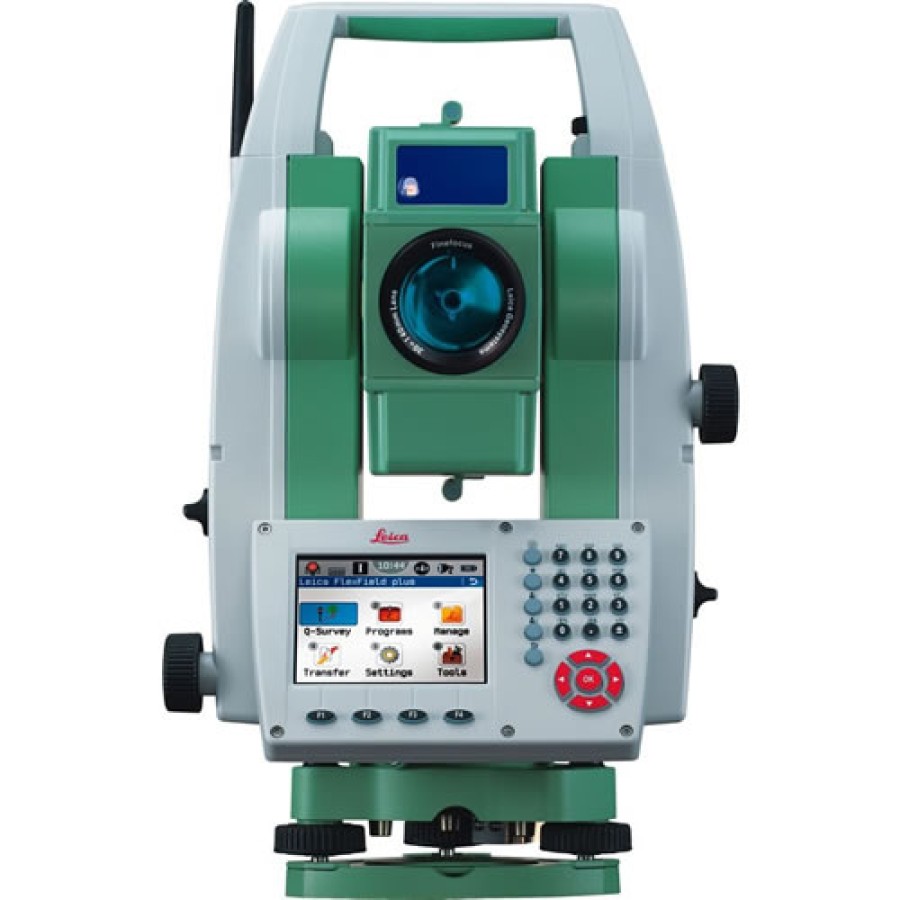

The Leica Flexline TS09plus Total Station continually delivers measurements which are extremely precise and accurate. Use a selection of EDM options for measuring to prisms or directly to objects without the need for a reflector. Specifically designed for applications of mid to high accuracy it comes with easy setup with a laser plummet and guided process at start-up. The ergonomic key layout and large display provides error-free data input and makes operation simple.

Features of the Leica Flexline TS09plus Total Station include a built-in easy to use alpha numerical keyboard for fast entry of numbers, special characters and numbers. This not only increases speed and productivity but also minimises errors.

The Flexline TS09plus allows for connections to any data collector via a cable free Bluetooth connection. It is suitable with Leica Viva CS10 or Leica CS15 using SmartWorks software. The USB functionality gives transfer flexibility of data files including GSI, ASCII, DXF, CSV and more. The Flexline TS09plus also has a large internal memory and can store up to 100000 fix points and 60000 measurements. The New FlexField plus software and colour touch screen makes operation quick and easy through graphical guidance.

This Total Station uses Lithium-Ion batteries for long life, fast charging and an operation time of 30 hrs. The Flexline weighs 5.1kg including the GEB211 battery and tribrach. Its container is light, tough and keeps the instrument with all the accessories dust and waterproof.

The Leica Flexline TS09plus comes with Leica Geosystems mySecurity which locks the instrument and disables it so it can no longer be used should it be stolen.

Features:

• 1-second accuracy

• 100,000-point internal memory

• 1,640 foot range

• Bluetooth

• R500 reflectorless

• PinPoint laser technology

• Electronic Guide Light for faster stakeout

• Laser plummet and pointer

• Regular and mini USB ports

• Full FlexField software with standard functional programs

• Setup wizard for low learning curve and guided workflows

• User-defined softkeys

• Larger font size for fast and clear readability

• Up to 30-hour battery life

• Water resistant and dustproof to IP-55

• Backlit color LCD touchscreen display

• Illuminated alphanumeric keyboard

• Theft protection

• One-touch measurement trigger key

• Can withstand arctic temperatures

What's in the Box:

• (1) TS09 plus Total Station with Reflectorless EDM, 1 Full Keyboard

• (1) GSD04 Communication Kit Sidecover with USB Memory Stick

• (1) 1yr Warranty and Basic Customer Care Package

• (1) Carry Case

• (1) User Manual

• (1) Calibration Certificate - 1 Year

• (1) GDF111-1 Basic Tribrach

• (2) GEB212 Li-Ion Battery

• (1) GKL311 Battery Charger

• (1) GEV267 Data Transfer Cable

• (1) GMP111-0 Mini Prism & Pole

Brochure/Datasheet

Instruction manual
