The Leica Disto D810 Touch is the first laser distance meter in the world with touchscreen capability for simpler navigation and access to functions. It has an integrated camera that enables construction professionals to measure and document measurements with photos. This handheld laser tool also features Bluetooth Smart for sending measuring data to your compatible Apple iOS, Android and Windows 8 devices.

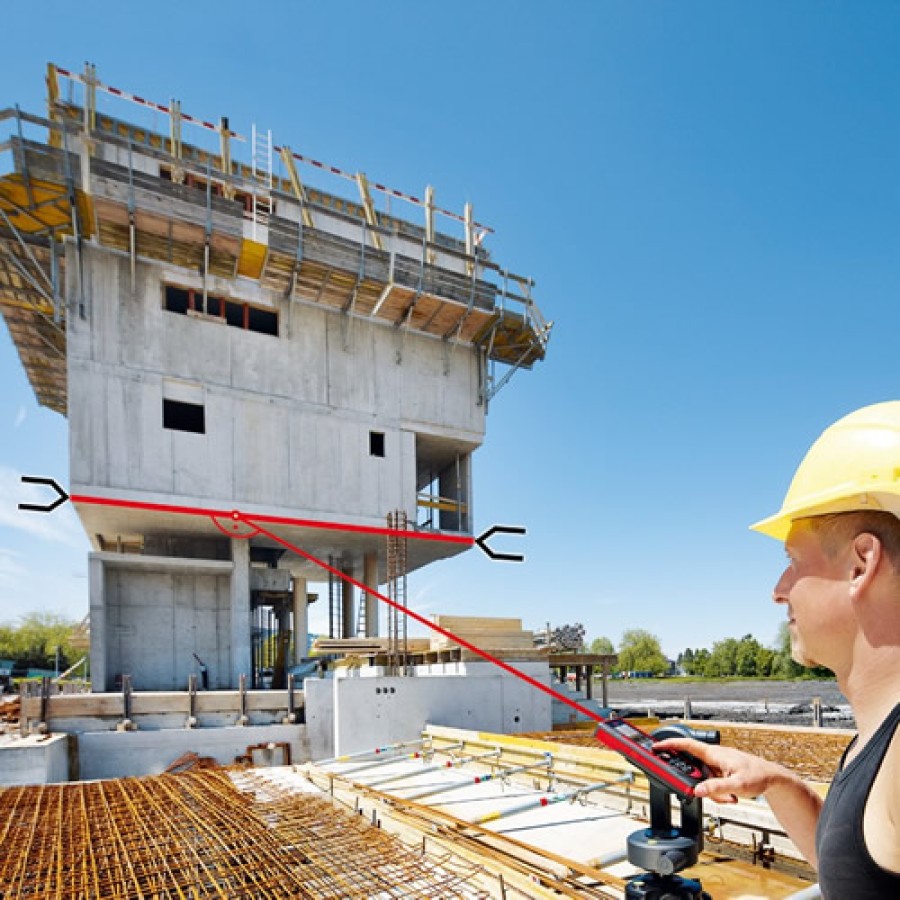

Long Distance Accuracy With a working range of up to 650 feet, the D810 Touch is accurate up to ±1/16 inch and a built-in tilt sensor that displays 360-degree angle measurement in two axes for extremely precise results.
TouchscreenThis Leica laser distance meter is equipped with a large touchscreen for quick and intuitive operation. Common gestures used on smartphones, such as swipe and zoom with two fingers can be used, making all functions simple and easily accessible. Measurements can also be taken using the touch screen, avoiding unintentional movement during measurements.In keypad mode, you can use the Bluetooth Smart function to link your Leica Disto D810 to your Windows computer or Apple iOS device and send measured values in the form of a keyboard entry to any program.
Measure and Document with a PictureUsing its built-in camera, the Disto D810 can capture the height, width, area and diameter of objects with only one measurement. Simply take one measurement at a right angle to the object and move the two arrows on the touchscreen to determine the dimension between them.The camera function can also be used to create pictures or screenshots, which can then be downloaded to a computer via USB.
Digital PointfinderWith the integrated digital Pointfinder you can take measurements even under less than ideal lighting conditions. The overview camera provides excellent view of the measurement target and 4x zoom, so even when the laser point is not visible to the naked eye, the target can be seen on the large, high resolution touchscreen display.

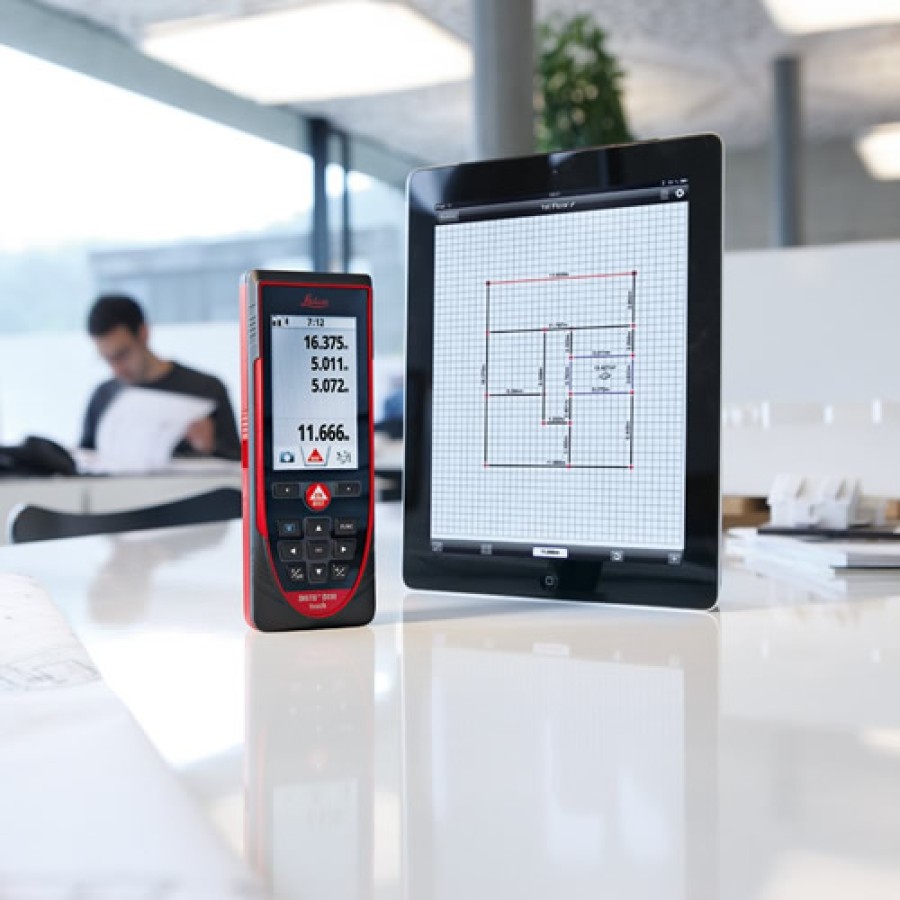

Quickly Sketch on the JobsiteThe latest Leica Disto laser comes with a free sketch app that provides the ideal link between the D810 touch and your smartphone or tablet. Create easily scaled sketches, dimension objects in a photo and check drawings with the app. You can also integrate detailed sketches in an existing plan view and send them directly to the office.
Memory and Measurement FunctionsThis Disto laser features automatic storage of the last 30 measurements and offers a number of measuring modes, such as area, volume, height tracking, Pythagoras, height profile, stake-out, sloped objects, right angles, indirect measurements and trapezium. You can also use the Smart Horizontal mode for accurate horizontal measurements and Long Range mode with a tripod for long distance measurements under unfavorable conditions.
With an IP54 rating, the D810 Touch is protected against dust and water splashes. And its rechargeable Li-Ion battery takes up to 4,000 measurements on a single charge.
Long Distance Accuracy
Measure and Document with a Picture
Quickly Sketch on the Jobsite
Memory and Measurement Functions
- Touchscreen color display
- Connects with Bluetooth 4.0 Smart Ready Devices Only
- 800-foot range
- ±1/16 inch accuracy
- Built-in pointfinder with 4x zoom camera
- Camera function with USB download
- Measure with a picture
- 360-degree tilt sensor
- Smart horizontal mode
- Long range mode
