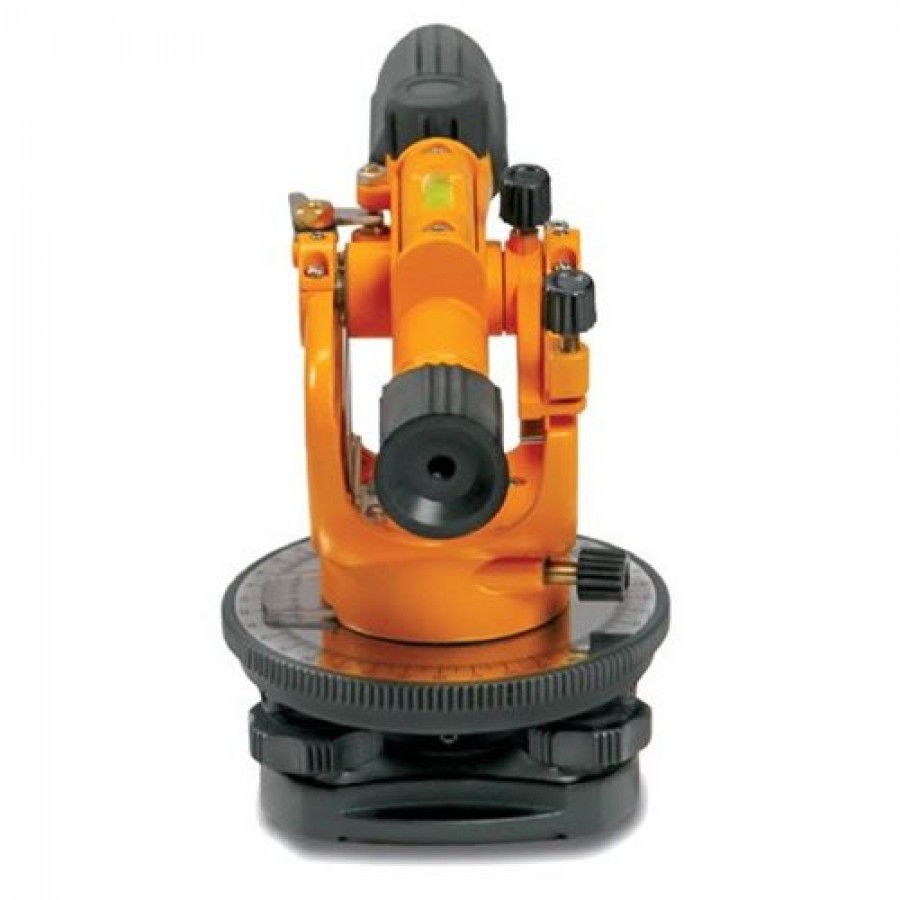

The Johnson 40-6910 Transit Level with 1-degree vertical arc enables surveyors and construction professionals to align and plumb concrete forms, establish grades and level deck floors. Featuring an eyepiece with fixed crosshairs, this optical instrument provides 22x magnification and has an integrated 15-minute horizontal circle for setting rough angles.

Accurate Plumb and Rough Angles

With 200 feet working range, the Johnson 40-6910 provides both vertical and leveling operations. It also has an accuracy of 3/16-inch at 100 feet and is ideal for rough angle turning and fine-tuning adjustments.

Level Vial and Sunshade

This Johnson transit level features a top mounted level vial and built-in sunshade for effortless viewing and clear sighting. Designed for various leveling applications, it also has 4-foot minimum focus for maximum usable range.

Leveling Screws and Vertical Lock

With large, easy-to-turn leveling screws and vertical lock lever, the Johnson 40-6910 level provides precise movement control. It also uses a 5/8 x 11 thread for mounting on tripods.

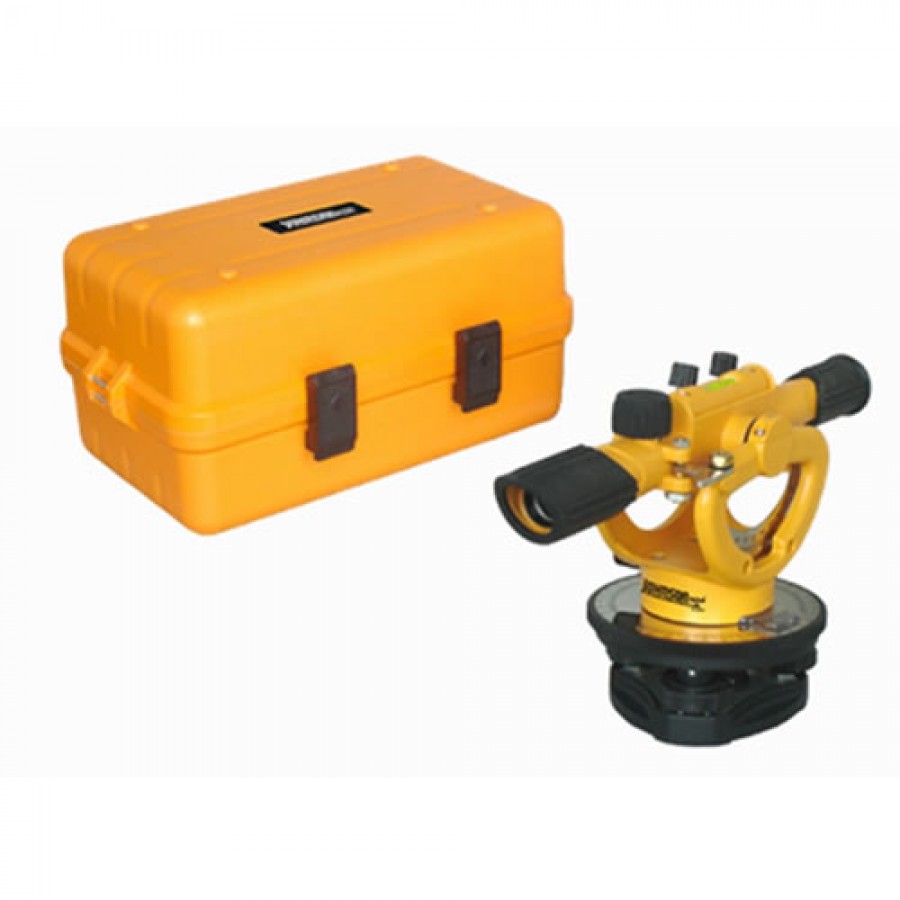

This Johnson transit level package comes with hard carrying case and 1-year manufacturer’s warranty.

Features:

- For leveling, measuring angles and plumb

- 200 foot range

- 3/16-inch at 100 feet accuracy

- 22x magnification

- 1-degree vertical arc

- 15-minute horizontal circle

- Vertical lock and tangent screw for precise movement control

- Built-in sunshade

- Large leveling screws

- Top mounted leveling vial

- Eyepiece with fixed cross hairs

- 5/8 x 11 tripod thread

What's in the Box

- (1) Johnson 22X Transit Level 40-6910

- (1) Hard-shell carrying case

- (1) User manual

- (1) 1-year manufacturer's warranty

Brochure/Datasheet

Instruction manual
