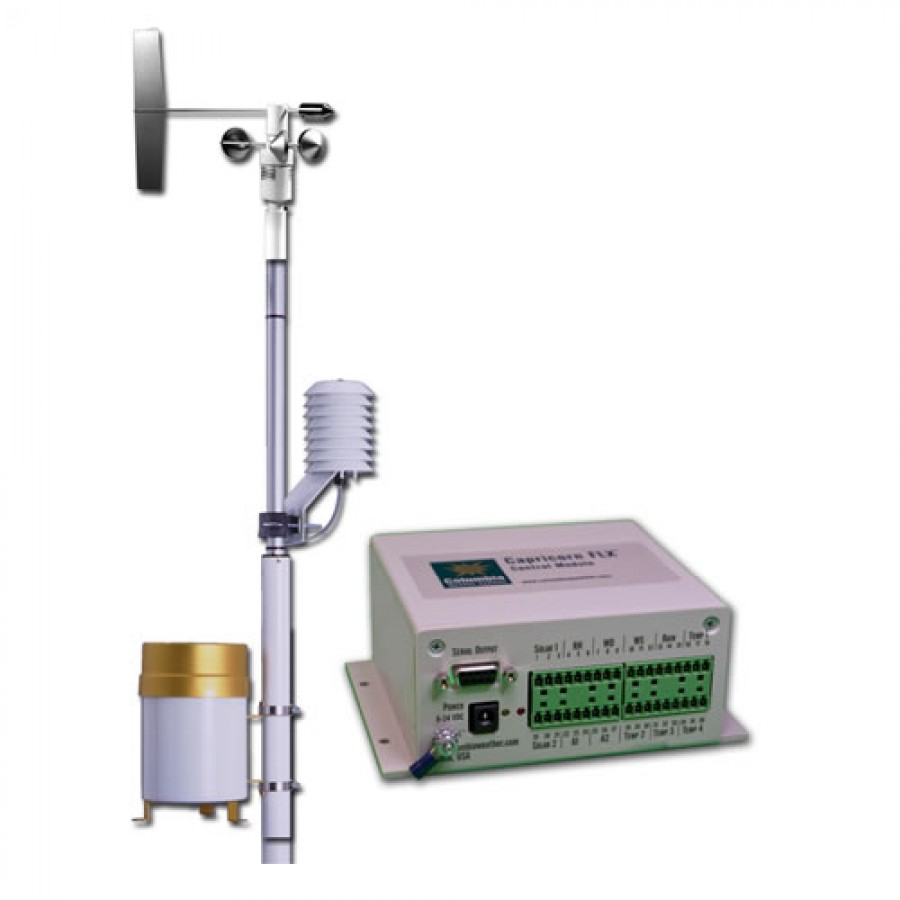

Capricorn FLX™ weather station’s modular design offers flexible parameter selection for optimal sensor location. Low power consumption makes this system compatible with alternate power sources such as solar and battery where required.

The Control Module can accepts signal inputs from the following meteorological sensors:

• Mechanical wind direction and speed (heavy-duty, heated available)
• Relative humidity
• Temperature (up to four total; air, soil and/or water)
• Barometric pressure (internal to Control Module)
• Rain gauge (tipping bucket)
• Solar radiation (up to two total)
• Two general purpose analog channels for additional sensors

The Capricorn FLX is available in three configurations:  fixed-mount, vehicle-mount, and the Pegasus FLX™ portable weather station. Meteorological data can be monitored with:  Weather Display Console™ , Weather Master ™ Software,  Weather MicroServer™ , 4-20 mA signal output.

Includes:

• (1) Control Module
•
  (12) 3-position terminal blocks
•
  (1)  Power Supply
•
  (1) Temperature Sensor with 50ft cable
•
  (1) Relative Humidity Sensor with 50ft cable
•
  (1) Self-Aspirating Radiation Shield for Temp & RH Sensors
•
  (1) Wind Speed and Direction Sensor with 50ft cable
•
  (1) 6-foot RS-232 cable + additional cable length if ordered
• (1) User Manual
• Tipping Bucket Rain Gauge (Optional)
•  Solar Radiation Sensor (Optional)
• WeatherMaster software and user manual (Optional)
• Weather MicroServer (Optional)

• Temperature: Digital semiconductor type; Accuracy: ± 0.9°F from +14° to 185°F ± 3.6°F from -67° to 257°F; Resolution: 0.01°F
• Barometric Pressure: MEMS; temperature compensated and calibrated; Accuracy: ± 0.03 in. Hg (1 hPa); Range: 14.8 to 32.5 in. Hg (500 to 1100 hPa); Resolution: 0.001 in. Hg (0.01 hPa)
• Wind Speed: Sealed reed switch; Accuracy: ± 0.25 mph from 0 to 23 mph, ± 1% from 24 to 160 mph; Range: 0 to 160 mph (139 knots); Resolution: 1 mph; Starting Threshold: 0.9 mph
• Wind Direction: Precision Potentiometer; Resolution: 2 degrees; Range: 0 to 360 degrees; Accuracy: ± 4 degrees
• Relative Humidity: Capacitance; Accuracy: ± 3% (or better) from 10 to 90% RH; Temperature Effect: less than <±1.5% RH; Stabiltiy: ± 2% RH over 2 years; Reporting Resolution: 1% RH
• Rainfall: Tipping bucket; Accuracy: ± 1% at 2 in./hr or less; Resolution: 0.01 inch
• Solar Radiation: Silicon photodiode; Cosine Response: 45° zenith angle ± 1%, 75°. zenith angle ± 5%; Absolute Accuracy: ± 5%; Uniformity: ± 3%; Repeatability: ± 1%; Output Responsivity: 0.200 mV per W/m2; In full sunlight: 220 mV (1,100 W/m2); Linear Range: 0 - 350 mV (0 - 1,750 W/m2); Sensitivity: 5.00 W/m2 per mV.
