The Capricorn FLX Vehicle-Mount Weather System provides weather monitoring for mobile Command Post operations. Internal system components are permanently mounted in the vehicle. The telescoping sensor mast and affixed sensors are detachable for transportation storage, then simply clicks into place once on-scene – ready for immediate operations. The entire system is operational within minutes to provide critical weather information where and when it is needed.

The Capricorn FLX features a durable aluminum/stainless steel wind direction and speed sensor. This sensor offers two-degree compass-point wind direction resolution and superior accuracy.

Weather Parameters Monitored • Temperature • Barometric pressure • Wind direction • Wind speed with gust and average wind • Relative humidity • Heat index • Wind chill • Daily max/min • Rainfall (optional)

The 9-ft telescoping sensor mast is made of rugged anodized aluminum, with heavy-duty powdered-coated steel mounting brackets which are permanently installed on the vehicle. An alternate collapsible roof mount mast is available.

Features:

• Exterior sensors temperature, relative humidity, wind speed and direction each with 15-feet of cable to connector plate
• Self-Aspirating radiation shield for temperature and humidity sensors

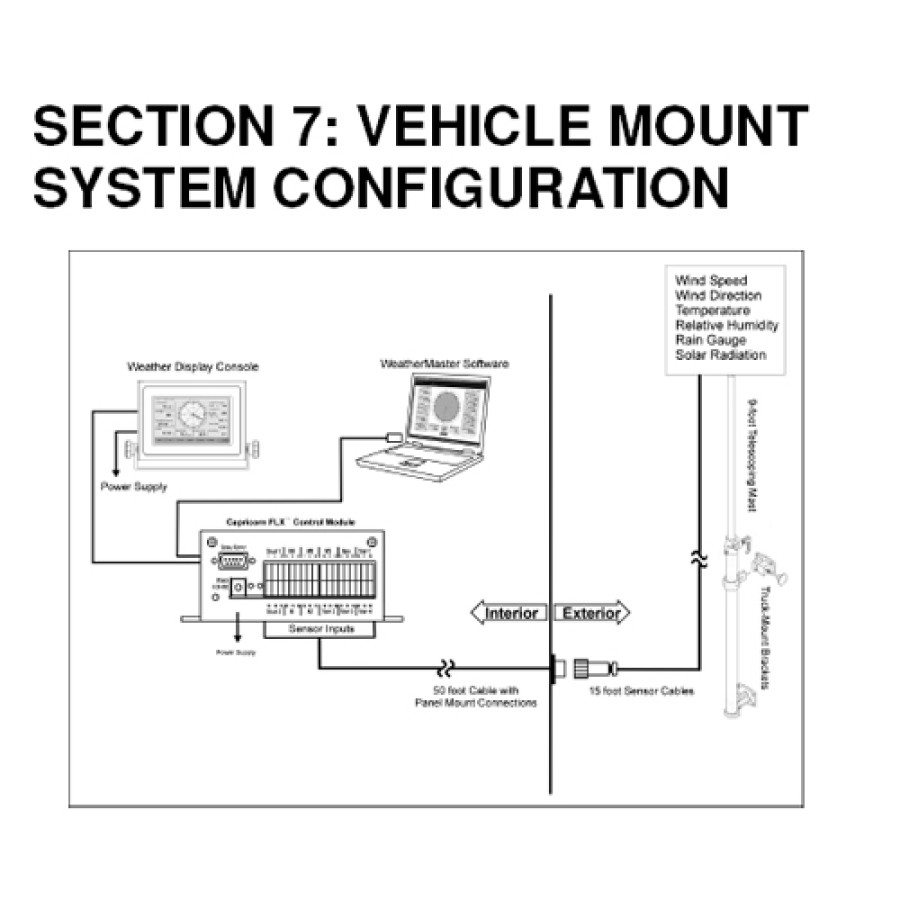

• Connector plate mounts on truck for exterior sensor input cables to interior control module cable
• Control module with internal barometric pressure sensor and 50-feet of cable to connector plate
• Interior wall mount power supply
• Telescoping mast (9-foot) and mounting brackets
• RS-232 computer cable, 6 feet
• One-year Warranty

Includes:

• (1) Control Module

• (12) 3-positon terminal block connectors
• (1) 6-foot RS-232 cable (plus additional cable lengths, if ordered)
• (1)
  Power Supply
• (1) Temperature Sensor with15 ft external sensor cable and male sensor connector (plus additional cable lengths, if
  ordered)
• (1) 50 ft internal Temperature Sensor cable with vehicle mount female sensor connector (plus additional cable lengths, if
  ordered) and all-weather connector cap
• (1) Wind Sensor with15 ft external sensor cable and male sensor connector (plus additional cable lengths, if ordered)
• (1) 50 ft internal Wind Sensor cable with vehicle mount female  sensor connector (plus additional cable lengths, if ordered)
  and all-weather connector cap
• (1) Relative Humidity Sensor with15 ft external sensor cable and  male sensor connector (plus additional cable lengths, if
  ordered)
• (1) 50 ft internal Relative Humidity Sensor cable with vehicle mount female sensor connector (plus additional cablelengths, if ordered) and all-weather connector cap
• (1) 50 ft internal Rain Gauge Sensor cable with vehicle mount  female sensor connector (plus additional cable lengths, if
  ordered) and all-weather connector cap
• (1) 50 ft internal Solar Radiation Sensor cable with vehicle mount female sensor connector (plus additional cable lengths, if ordered) and all-weather connector cap
• (1) Self-Aspirating Radiation Shield for Temperature & Humidity Sensors
• (1) 9 ft telescoping mast with vehicle-mount brackets
• (1)
  Mast extension sleeve adapter
• (1) Connector Plate
• (1)
  User Manual

• (Optional) Solar Radiation Sensor with with15 ft external sensor cable and male sensor connector (plus additional
  cable lengths, if ordered)

• (Optional) Rain Gauge with with15 ft external sensor cable and male sensor connector (plus additional cable lengths, if ordered)

• RS-232 Interface Module (optional)

• Weather Display Console (Optional)
• WeatherMaster Software, with User Manual (Optional)


• Temperature: Digital semiconductor type; Accuracy: ± 0.9°F from +14° to 185°F ± 3.6°F from -67° to 257°F; Resolution: 0.01°F
• Barometric Pressure: MEMS; temperature compensated and calibrated; Accuracy: ± 0.03 in. Hg (1 hPa); Range: 14.8 to 32.5 in. Hg (500 to 1100 hPa); Resolution: 0.001 in. Hg (0.01 hPa)
• Wind Speed: Sealed reed switch; Accuracy: ± 0.25 mph from 0 to 23 mph, ± 1% from 24 to 160 mph; Range: 0 to 160 mph (139 knots); Resolution: 1 mph; Starting Threshold: 0.9 mph
• Wind Direction: Precision Potentiometer; Resolution: 2 degrees; Range: 0 to 360 degrees; Accuracy: ± 4 degrees
• Relative Humidity: Capacitance; Accuracy: ± 3% (or better) from 10 to 90% RH; Temperature Effect: less than <±1.5% RH; Stabiltiy: ± 2% RH over 2 years; Reporting Resolution: 1% RH
• Rainfall: Tipping bucket; Accuracy: ± 1% at 2 in./hr or less; Resolution: 0.01 inch
• Solar Radiation: Silicon photodiode; Cosine Response: 45° zenith angle ± 1%, 75°. zenith angle ± 5%; Absolute Accuracy: ± 5%; Uniformity: ± 3%; Repeatability: ± 1%; Output Responsivity: 0.200 mV per W/m2; In full sunlight: 220 mV (1,100 W/m2); Linear Range: 0 - 350 mV (0 - 1,750 W/m2); Sensitivity: 5.00 W/m2 per mV.
