When wind direction and speed measurements are critical, the Pegasus FLX Weather Station offers a complete weather monitoring solution for portable operations. For HazMat, pollution control, research, and other environmental monitoring requirements, the Pegasus FLX's wind sensor offers two-degree wind direction resolution and up to 160 mph wind speed range.Weather Parameters Monitored • Temperature • Barometric Pressure • Wind Direction • Wind Speed • Relative Humidity

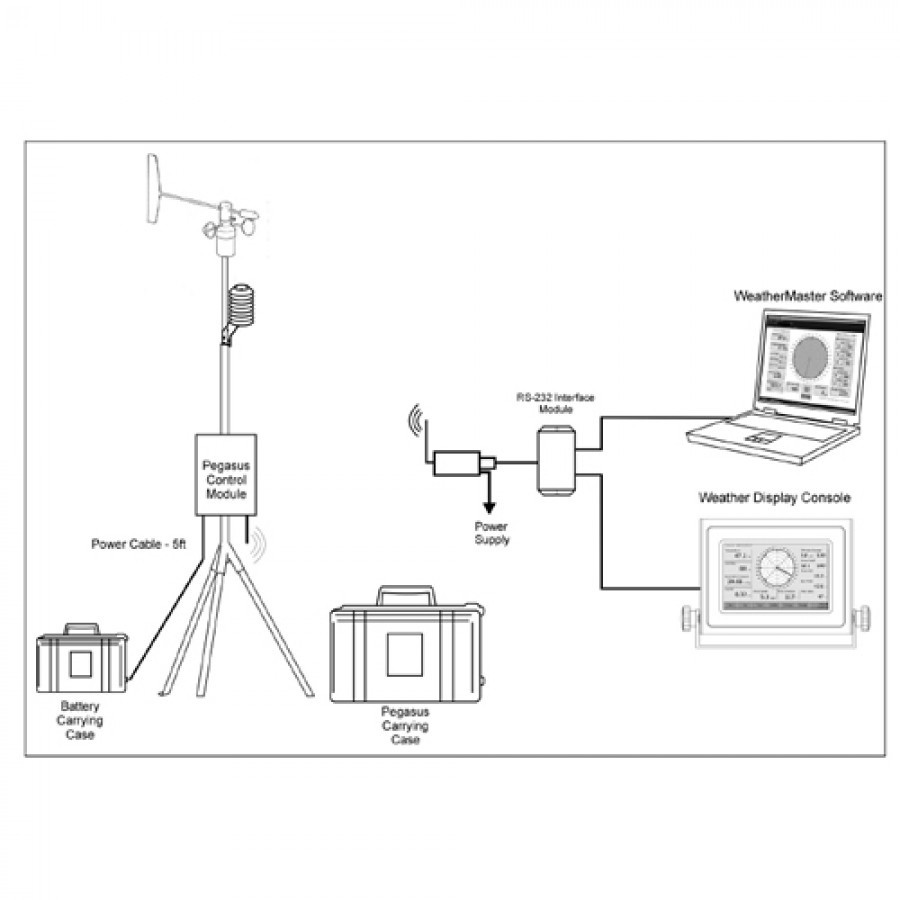

The Pegasus FLX uses the Capricorn FLX Control Module to provide a complete weather station in a convenient portable system.
The Pegasus transmits weather data wirelessly via a pair of 2.4GHz  transceivers to a monitoring option, such as a Weather Display Console  or a computer running WeatherMaster software. An optional RS-232  Interface Module is available to connect the wireless transceiver to multiple devices. The transceivers communicate wirelessly, at a distance of 1 mile with a
clear line-of-sight.

Features:

• High resolution wind direction sensor and up to 160 mph wind speed range
• Digital sensors calibrated for accurate readings, yet tough enough for emergency environments
• Rugged weatherproof Control Module protects sensitive components and is easily decontaminated
• Wireless transceivers provide remote capability (two-mile range)
• Tripod sensor mast makes set up simple while "quick-connect" sensors allow system to be instantly operational
• Sealed battery system with charger for continuous monitoring
• Rugged transportation cases for instruments and tripod
• Automatic interface with Cameo/Aloha Software

Includes:

• (1) Control Module

• (12) 3-positon terminal block connectors

• (2)
  Pair of 2.4GHz wireless transceivers
• (1) Temperature Sensor with 15ft sensor cable
• (1)
  Relative Humidity Sensor with 15ft sensor cable
• (1) Wind Sensor with 15ft sensor cable
• (1)
  Self-Aspirating Radiation Shield for Temperature and Humidity Sensors
• (1)  Battery Power System encased in a small transportation case, with two 12VDC/12AH batteries
• (1)
  Battery charger
• (1) 10ft telescoping tripod sensor mast, tiedown kit, compass and mounting hardware

• (1) Heavy-Duty canvas tripod transportation bag
• (1)
  Large Heavy-Duty polyethylene transportation case
• (1) User Manual

• Temperature: Digital semiconductor type; Accuracy: ± 0.9°F from +14° to 185°F ± 3.6°F from -67° to 257°F; Resolution: 0.01°F
• Barometric Pressure: MEMS; temperature compensated and calibrated; Accuracy: ± 0.03 in. Hg (1 hPa); Range: 14.8 to 32.5 in. Hg (500 to 1100 hPa); Resolution: 0.001 in. Hg (0.01 hPa)
• Wind Speed: Sealed reed switch; Accuracy: ± 0.25 mph from 0 to 23 mph, ± 1% from 24 to 160 mph; Range: 0 to 160 mph (139 knots); Resolution: 1 mph; Starting Threshold: 0.9 mph
• Wind Direction: Precision Potentiometer; Resolution: 2 degrees; Range: 0 to 360 degrees; Accuracy: ± 4 degrees
• Relative Humidity: Capacitance; Accuracy: ± 3% (or better) from 10 to 90% RH; Temperature Effect: less than <±1.5% RH; Stabiltiy: ± 2% RH over 2 years; Reporting Resolution: 1% RH
• Rainfall: Tipping bucket; Accuracy: ± 1% at 2 in./hr or less; Resolution: 0.01 inch
• Solar Radiation: Silicon photodiode; Cosine Response: 45° zenith angle ± 1%, 75°. zenith angle ± 5%; Absolute Accuracy: ± 5%; Uniformity: ± 3%; Repeatability: ± 1%; Output Responsivity: 0.200 mV per W/m2; In full sunlight: 220 mV (1,100 W/m2); Linear Range: 0 - 350 mV (0 - 1,750 W/m2); Sensitivity: 5.00 W/m2 per mV.
