SubSurface Instruments PL-960 Pipe and Cable Locator
- Brand: SubSurface Instruments
- Product Code: PL-960
- Availability: 10 - 14 Working Days
- Rp.118,600,000

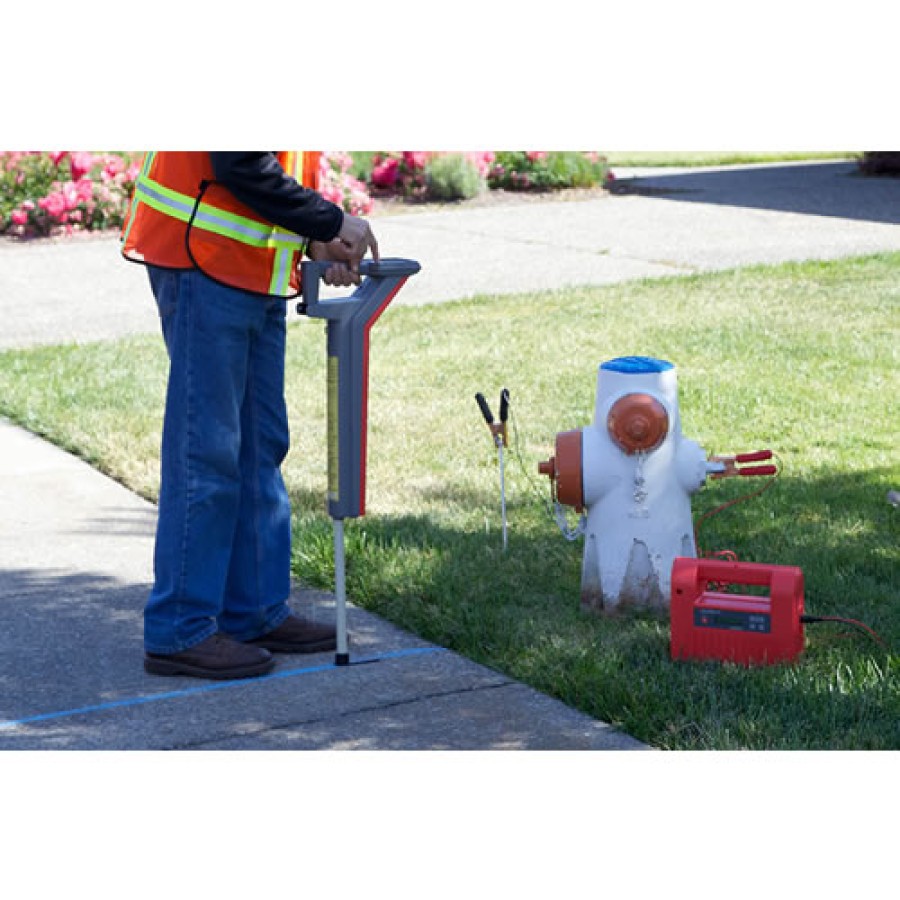

Experience quick and precise one handed operation with the PL-960 Pipe and Cable locator. The PL-960 utilizes a fully-tested, high-performance differential pick-up coil, and weighs in at 5.5 pounds.
The PL-960 offers a high power, high frequency locating. With 3 active frequencies, 27kHz, 83kHz, and 334kHz.
The PL-960 is powerful and versatile. It can trace and locate any continuous metal such as iron, steel, and copper water lines, gas lines, tracer wire by plastic pipe, telephone/TV cables, copper and aluminum wire, conduit and power lines.
Max depth 5m. Runs on 6D cell batteries-Transmitter and 6 AA batteries-Receiver. Comes with Padded Case Transmitter, Receiver, manual and Conductive Clips.
Features:
- Single Coil Antenna to track a buried metallic line utility over a long distance and the Differential Coil Antenna to locate the same utility correctly.
- Three different frequencies designed in the most efficient range of 27kHz, 83kHz and 334kHz to locate and track the buried metallic line utility .
- Radio Mode which adds another function to track the buried metallic line utility without using the power from the Transmitter when the induction magnetic field.
- The single vertical bar (line) in the receiver is the "peak hold" feature. The peak hold shows the maximum signal measured in the last three seconds.
- Minimum Mode indicating the position of Receiver when it is positioned at the side of right or left of the buried metallic line utility.
- Displays the sensitivity level changed in the step from 00 10 40 to the signal from the transmitter.
- Displays the current measurement by the step from 000 to 100 which indicates if the depth of a buried object has been measured correctly.
- Optional accessories include an External Coil, and Cable drum with 50 meter cable.
What's in the Box:
- (1) Transmitter and 6 AA batteries-Receiver

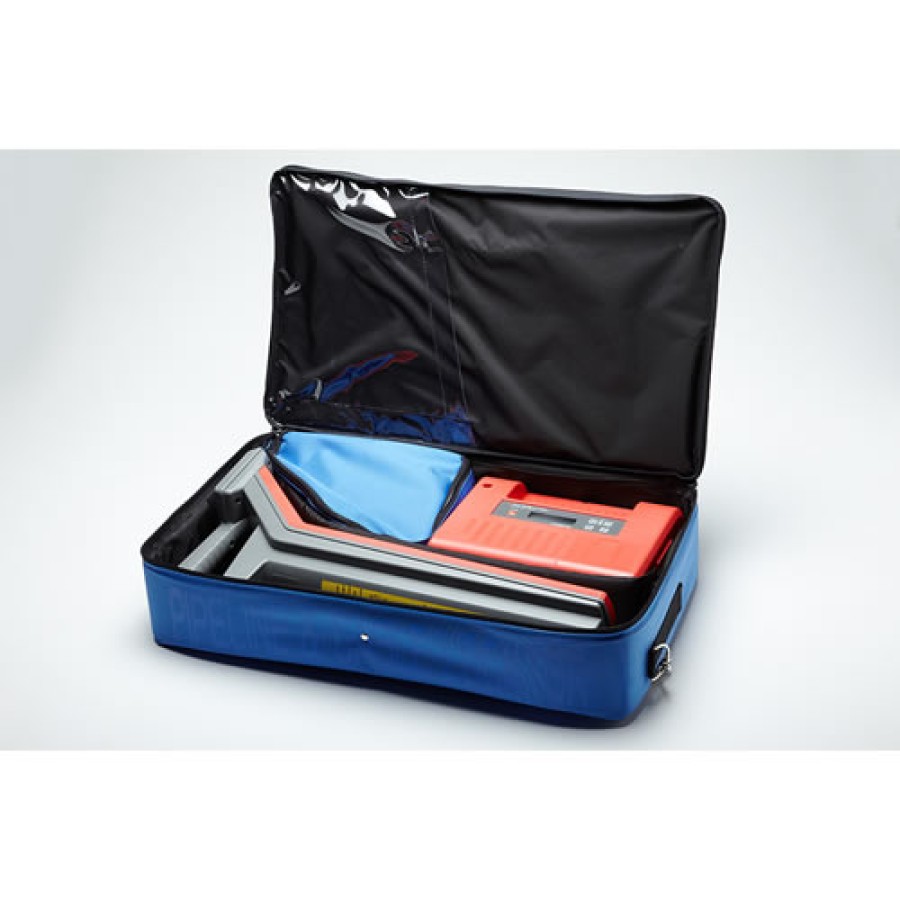

- (1) Padded Carrying Case
- (1) Ground Stake
- (1) Direct Connection Cables
- (1) Instruction Manual
Specifications:
Amplifier Specifications
- Size: 11.3"x9.5"x4.1" ( 288mm x 241mm x 105 mm)
- Weight: 5.5lb (2.5 kg)
- Input Power: DC 12 Volts (Eight (8) "D" size batteries or external 12v battery)
- Battery Life: Induction Mode = 0.5W
- Direct Mode = 3.0W
- Operating Temperature: 14° to 122° F (-10° to 50° C)
- Frequency Range: 27kHz, 83kHz, 334kHz
- Output Power: Induction Mode = Approx. 20 hours
- Direct Mode = Approx. 10 hours
- Antenna: Single Coil
- Depth Accuracy: 0 to 78: Within 5%
- 78 to 197: Within 10%

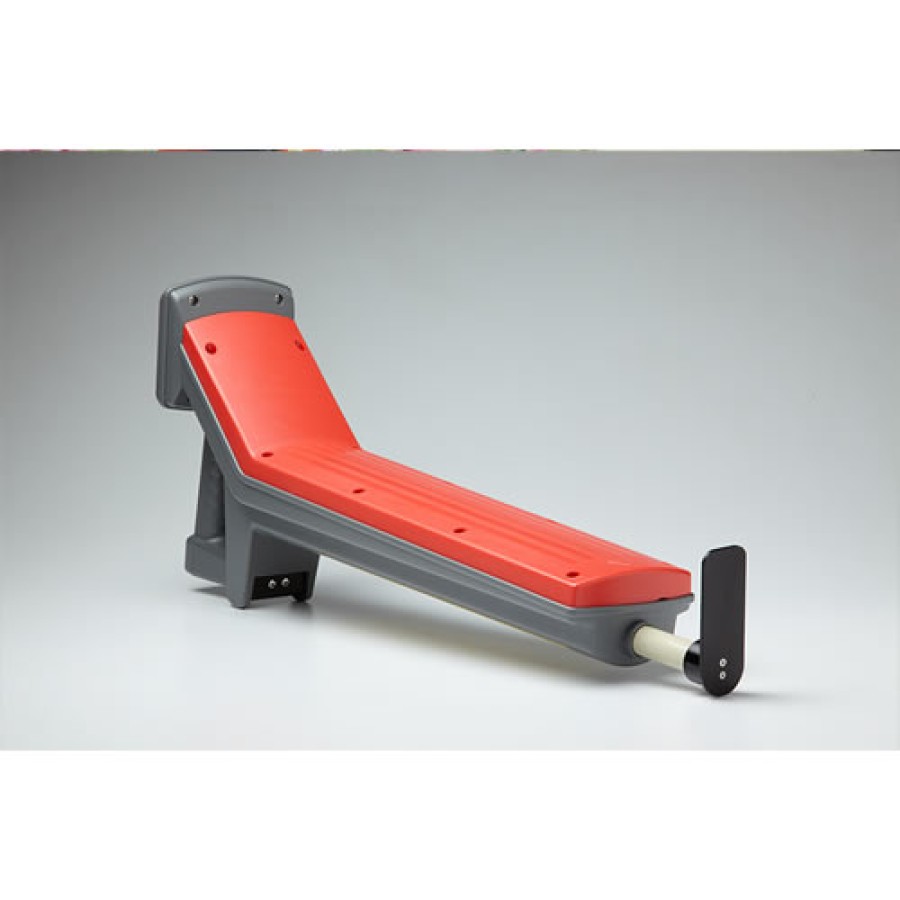

Receiver Specifications
- Size: 5.2 in x 11.0 in x 24.0 in (13.2 cm x 27.9 cm x 61.0 cm)
- Weight: 3.5 lbs (1.6 kg)
- Power Supply: DC 9 Volts (six (6) "AA" batteries)4.4 lbs (2.0 kg)
- Battery Life: 8 hours at non-signal condition
- 5 hours by using Speaker
- 5 hours by using Back Light
- Operating Temperature: 14° to 122° F (-10° to 50° C)
- Frequency Display: Value in 3 figures
- Operating Modes: "Peak" (or "Max"), "Live Cable"
- Sensitivity: Continuous Bar Graph with Auto Sensitivity Adjustment
- Warranty: 3 Years
