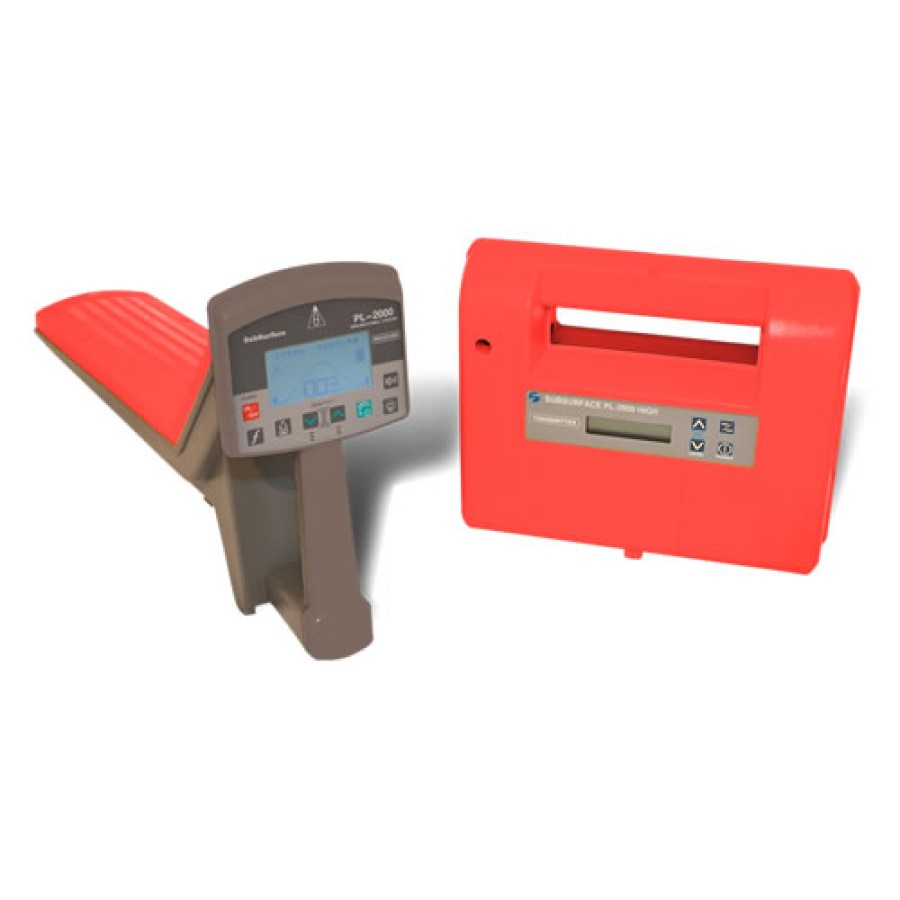

SubSurface Instruments PL-2000 Pipe and Cable Locator
- Brand: SubSurface Instruments
- Product Code: PL-2000
- Availability: 10 - 14 Working Days
- Rp.90,500,000
The PL-2000 multifrequency pipe and cable locator is a very durable unit
that is a work of art in its simplicity of use and sophistication of
operation. It is unique in that it offers four modes: peak, null,
distance and sonde. Plus, it's a workhorse, offering three active
frequencies, two passive frequencies, four modes of operation and both
inductive and direct connection capabilities. And all its components are
housed in a well-protected, lightweight and easy-to-use design.
Features:
- Transmitter has 3.0 watts power output in the Direct Connection mode; allowing locates for much longer distances.
- The lightweight, balanced receiver offers four different operating modes: "Peak" mode - for the most accurate locates and for depth measurement; "Null" mode - for fast, easy tracking (also indicates "left" or "right"); "Dist" mode - for even longer distances - up to 50 percent farther ; "Sonde" mode - for locating sewer Sondes and measuring their depths. Any 512 Hz/8 kHz will be detected.
- Three "active" frequencies at a nominal 0.5 kHz, 8 kHz and 27 kHz, plus two "passive" frequencies - the 50/60 power and radio passive
- Select the "Mix" mode at the transmitter and transmit all active frequencies simultaneously in the "Direct Connect" mode
- Detects and reports "poor ground" conductivity at the transmitter in Direct Connection
- Current measurement in the "Depth" function can verify you are tracing the correct line in congested utilities
- "Auto Off" functions in both the transmitter & receiver shut off their operations after a user defined time period of non-use
- Padded carrying case
- Optional Equipment for PL-2000
What's in the Box:
- (6) Reciver DC 9 Volts - ("AA" batteries)
- (8) Transmitter DC 12 volts"D" size batteries
- (1) Padded Carrying Case
- (1) Ground Stake
- (1) Direct Connection Cables
- (1) Instruction Manual
Specifications:
Transmitter Specifications- Size: 11.0 in x 9.5 in x 4.1 in (29.9 cm x 24.1 cm x 10.4 cm)
- Weight: 5.5 lbs (2.5 kg)
- Input Power: DC 12 volts (Eight (8) "D" size batteries or external 12v battery)
- Battery Life: ≈ 20 Hours Typical(Alkaline)
- ≈ 8 Hours at Max Power
- Operating Temperature: 14° to 122° F (-10° to 50° C)
- Frequency: 26.725 kHz, 8.125 kHz, and 512 Hz
- Output Power: 0.5 watts Inductive mode
- 3.0 watts Direct mode
- Transmitting Mode: Continuous Wave (non-modulating)
- Antenna: Single-Coil
- Depth Accuracy: Up to 16 feet
- Warranty: 3 Years
Receiver Specifications
- Size: 5.2 in x 11.0 in x 24.0 in (13.2 cm x 27.9 cm x 61.0 cm)
- Weight: 4.4 lbs (2.0 kg)
- Power Supply: DC 9 Volt (six (6) "AA" batteries)
- Battery Life: ≈ 8 Hours Continuous (Alkaline)
- Operating Temperature: 14° to 122° F (-10° to 50° C)
- Frequency Display: 26.725 kHz, 8.125 kHz or .512 Hz
- "Radio" Mode: 15 kHz - 25 kHz
- "Live Cable" Mode: 50/60 Hz AC
- Operating Modes: "Peak", "Null", "Dist", and "Sonde"
- Sensitivity: 0 to 40
- Warranty: 3 Years
