The AGL EZ Dig Pro 3 1-14260 Excavator Control System with Laser Detector provides you with real time grade and depth control in the cab for any position of your construction machine's boom, dipper stick and bucket. This means that your machine always stays productive, and there is no need to recheck elevations or have another person check depth, so your excavator can be operated by just one person.

Wireless Machine Control Detection
The EZ Dig Pro 3 grading system features 3 magnetic, battery driven sensors with solar power backup to easily install on your machine. One has a laser receiver and gets placed on the dipper stick. This laser receiver allows the excavator operator to reset the reference when the it moves. A second sensor is installed on the boom and the third on the bucket. Those 3 sensors send wireless radio communication to the control box and the remote display in the machine cab.

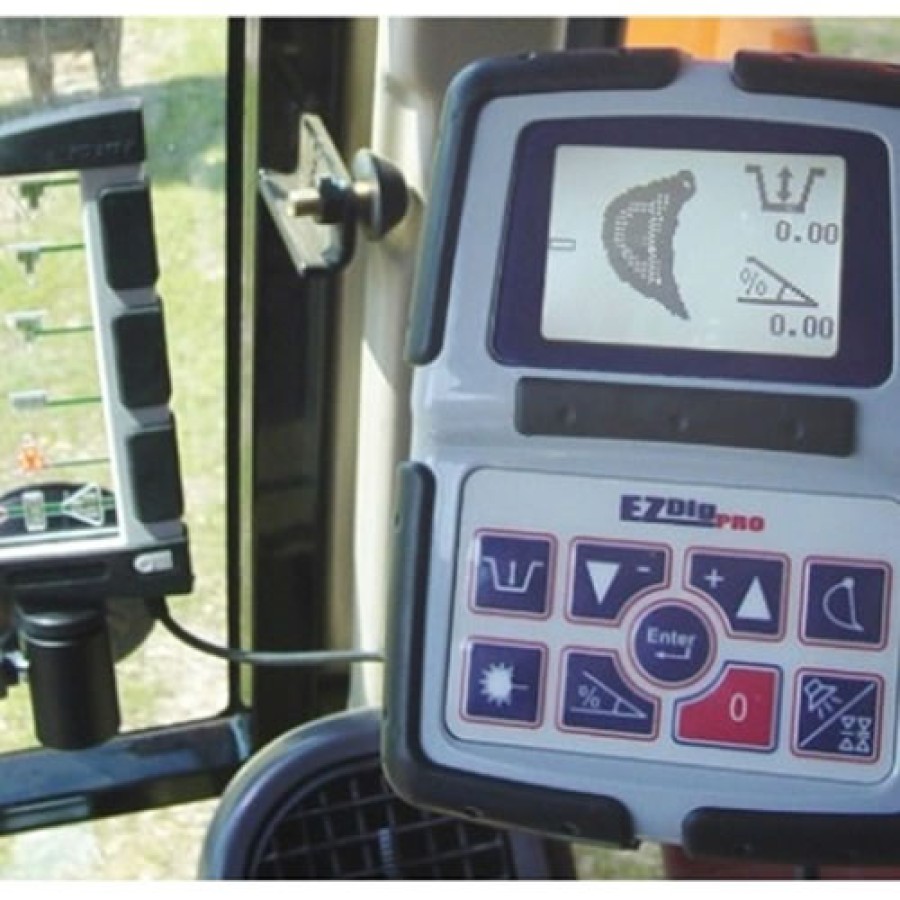

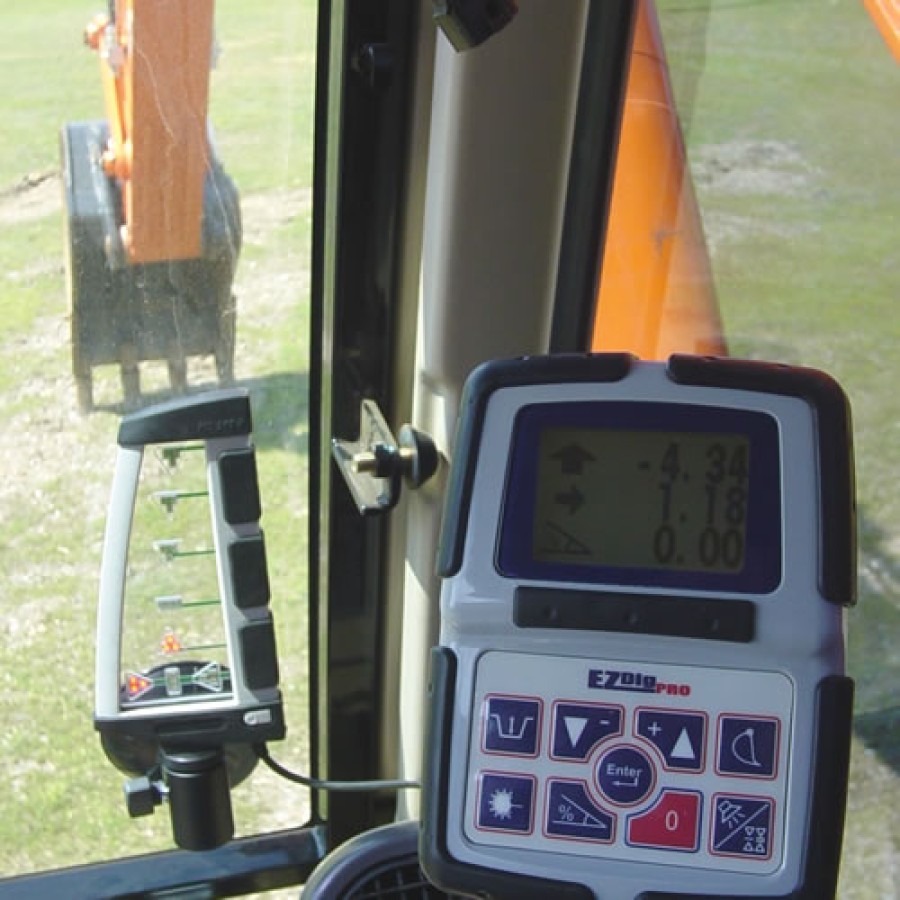

The remote display and control box easily mount into the cab directly in front of the operator. Now the operator can see the grade and depth information in real time, the bucket position and the ditch on the display screen. They can be powered by any 12 to 24 V power source, like a cigarette lighter, using the control box power cable. This machine control system can store up to 5 different machine's information and increase your excavator's efficiency by up to 70%.

High Accuracy Measurement
The AGL Excavator Grade Control System measures horizontal and vertical distances and slope with an accuracy of +/-0.4 in. It features an inclination range of +/-300% and it includes an alarm when maximum heights and depths are reached so you can stop digging. Measurements can be shown in feet, 10ths, inches and metric units.

Self-Calibrating
The EZ Dig Pro 3 Sensor Excavator Grade Control System is very easy to install. In additon the included AGL EZ Dig Pro Laser Pointer allows for self-calibration.

The EZ Dig Pro 3 machine control box features an illuminated LCD display and operating menu in different languages. All the sensors are waterproof and dust protected and the control box and display are water-resistant and also protected against dust. This AGL system works on any size excavator and can also be used with a rotary laser for a constant reference.

Features:

- Horizontal, vertical distance and slope
- Depth and grade control
- +/-0.4 in. accuracy
- Real time information with 100mS updates
- +/-300% inclination range
- Feet, 10ths, inches and metric units
- Fits any size excavator
- Saves calibration info for 5 machines and 9 buckets per machine
- Easy installation
- Self-calibration with laser pointer
- 3 wireless magnetic solar-backup angle sensors, 1 with laser receiver
- Remote with 8 LEDs lights
- Accelerometer technology
- Wireless radio communication
- Transmission range up to 197 ft
- Height and depth alarms
- Compatibility with rotary lasers
- Increase digging/grading efficiency up to 70%
- Real-time LCD display
- Multiple languages
- Sensor: Waterproof and dust protected
- Control box and display: Water-resistant and dust protected

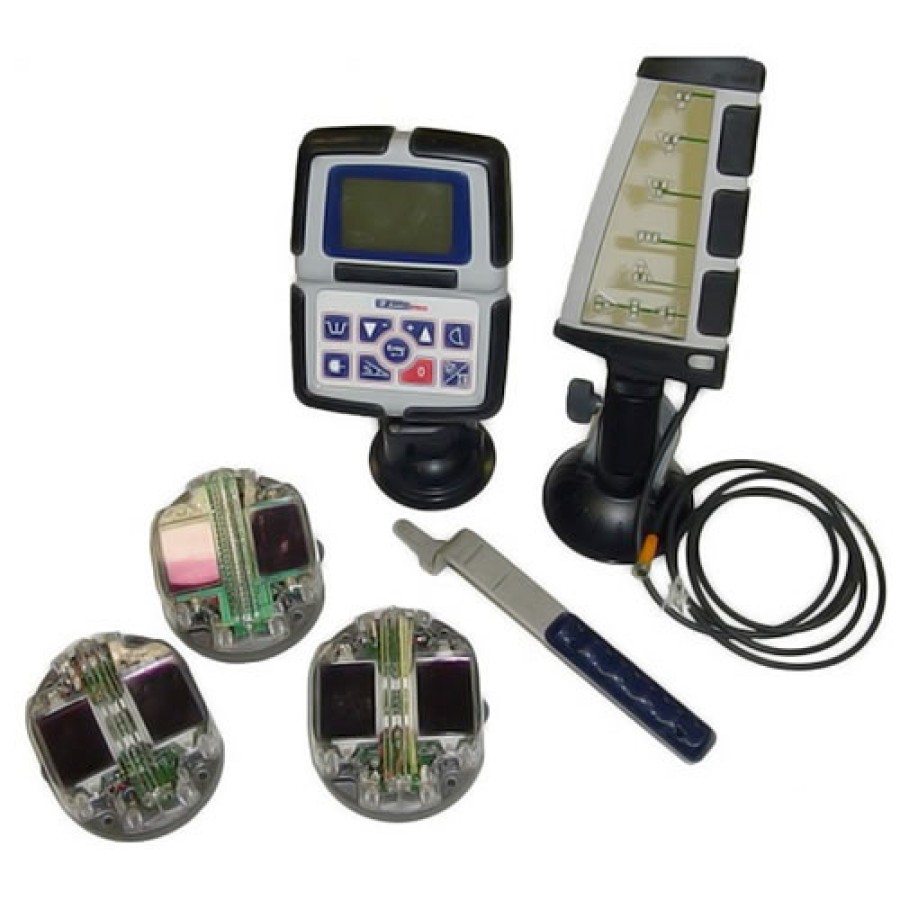

What's in the Box:

- (1) AGL EZ Dig Pro angle sensor with laser receiver 14263
- (2) Angle sensors 14262
- (1) Control box 14264 with power cable
- (1) Remote display 14268
- (1) Laser pointer with magnetic bracket 14269
- (3) Support plates 14267
- (1) Sensor removal tool 14266
- (1) Universal 110/220V charger
- (1) Carrying case
- (1) User manual
